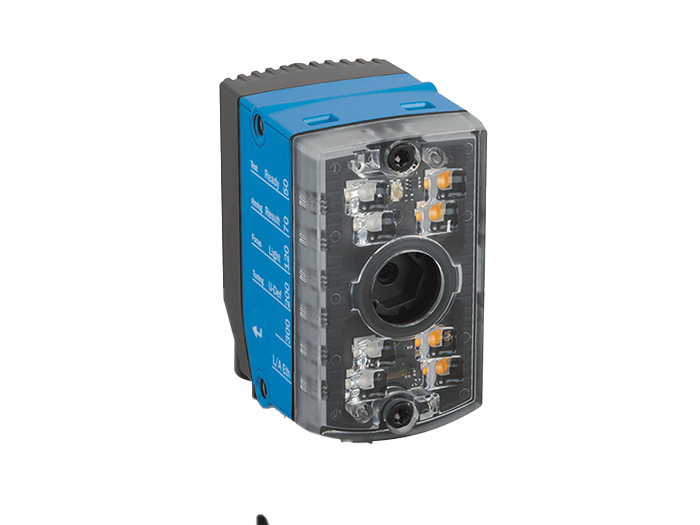

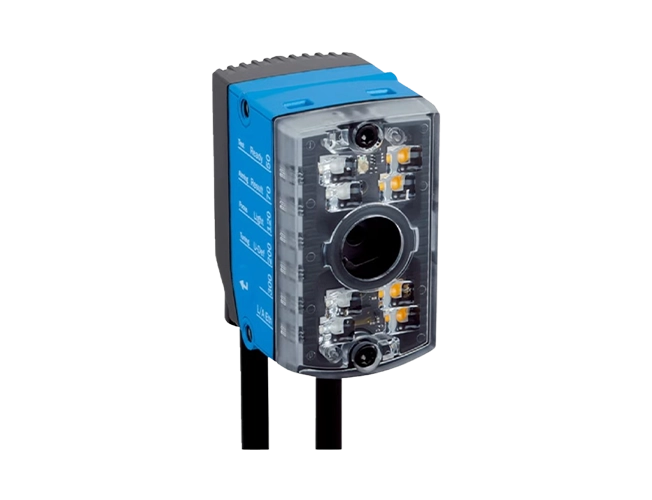

Sick - Vision PLOC2D ABB Kit
TF:
003112-HW-ABB-012
Overview
Sick - Vision PLOC2D ABB Kit-ABB. Easy to use and flexible part localization sensor system
| Industries Automobiles | Electronics Consumer Goods Storage, and sorting |
| System features | Stand-alone sensor with easy teach, for localization of parts using 2D measurements |
| Robot controller | ABB: Omnicore |
| Example field of view | For details see field of view diagram |
| Working range | 50 mm ... 300 mm |
| Light source | |
| Internal lighting | LED, visible red light, 617 nm, ± 15 nm |
| Internal lighting | LED, visible blue light, 470 nm, ± 15 nm |
| Feedback spot | LED, visible green light, 525 nm, ± 15 nm |
| Adjustment aid Laser | visible red light, 630 nm, ± 15 nm |
| Adjustment aid | Laser, visible red light, 630 nm, ± 15 nm |
| Laser class | 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014) EN 60825-1:2014 |
| LED class | Risk group 1 (low risk, IEC 62471 (2006-07) / EN 62471 (2008-09)) |
| Localization principle | Shape comparison |
| Sensor resolution | 1,280 px x 960 px (1.2 Mpixel) |
Easy to use and flexible part localization sensor system
• The sensor system is ready for measurement when unpacked
• Well integrated with ABBs Omnicore controller
• Easy setup and operation do not require the expertise of a machine vision specialist
• Fast and simple, guided calibration process
• Integrated optics and illumination
• Powerful teach-in and high accuracy ensure reliable operation
