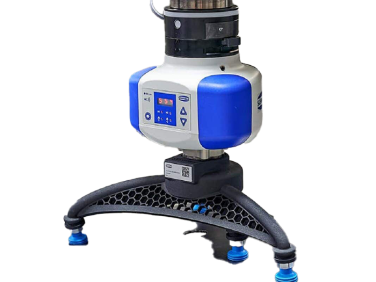

Schmalz - MATCH Vacuum Generators ECBPi ABB Kit, Intelligent electric vacuum generator for handling suction-tight workpieces

Specification

echnical Data ECBPi

Type	Suction Rate Max.[I/min]	Rated Power[W]	Rated Current[A]	Operating temperature
ECBPi	12	13	0.6	5...45°C

Design Data Handling Sets ECBPi

D[mm]	H[mm]
151.5	188.8

Description

Intelligent electric vacuum generator for handling suction-tight workpieces

• Ready to use for the MATCH end-of-arm ecosystem, with vacuum and mechanical gripper compatibility

• MATCH automatic & manual quick changer (digital IO / manual change with one hand)

• Suction rate up to 12 l/min

• Max. vacuum: 75 %

• Easy installation and commissioning (Plug & Work)

• Purely electric vacuum generation

• NFC and IO-Link interface

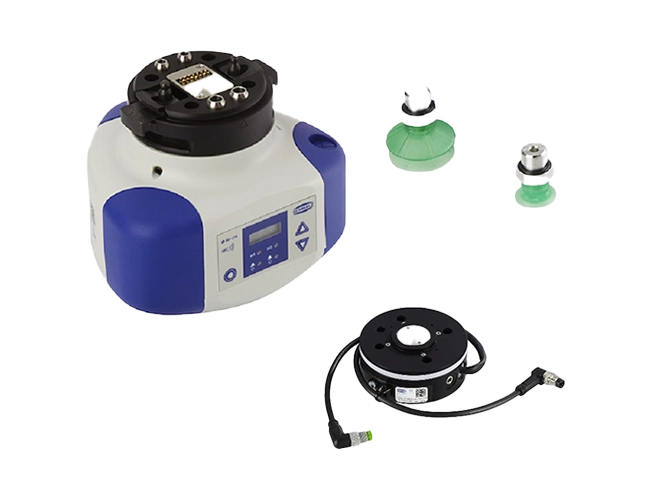

The kit also includes:

• Vacuum generator with gripper for handling suction-tight workpieces

• Flat and bellows suction cups included

• Mechanical connection system MATCH for easy installation (Plug & Work)
