Schmalz - MATCH mini Vacuum Generators ECBPMi ABB Kit
TF:
003116-HW-ABB-016
| Type | Suction rate (max.) [l/min] | Rated power [W] | Voltage | Rated current [A] | Operating temperature [°C] |
| ECBPMi 24V-DC M12-8 | 1.6 | 7.2 | 24V - DC | 0.3 | 0 ... 40 °C |
Design Data Vacuum Generator ECBPMi
| Type | L[mm] | L1[mm] | LG1 | LG2[mm] |
ECBPMi 24V-DC M12-8 | 67.41 | 73.41 | 6 | 11 |

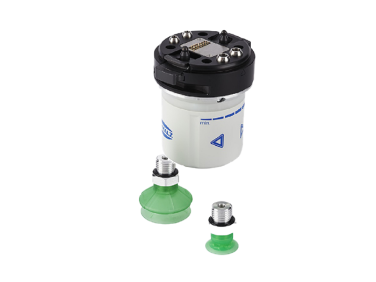

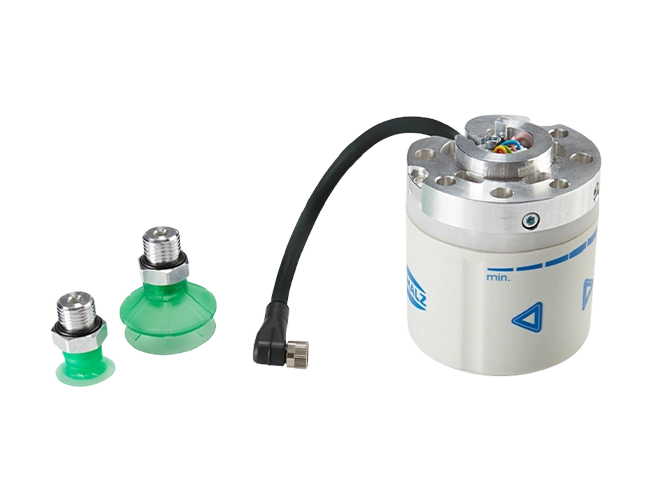

The Schmalz handling set ECBPMi is a ready-to-connect gripping system that can be put into operation directly on the ABB robot. In addition to the compact electric vacuum generator, the set also includes a vacuum suction cup. Setup and parameterization can be done via an intelligent software interface.
