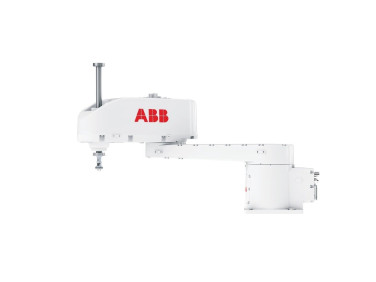

IRB 920T/IRB 920 SCARA robot for high precision assembly-ABB

  • NG # 003102-HW-ABB-002

Manufactured by:

This seller generally responds in under 48 hours

IRB 920T/IRB 920 SCARA robots offer a wide variety of models to fulfill various needs for electronics manufacturing applications

Specification

Robot versionIRB 920T6/0.45IRB 920T6/0.55IRB 920T6/0.65IRB 920-
6/0.55
IRB 920-
6/0.65
Reach (m)0.450.550.650.550.65
Payload (kg)6
Number of axes4
ProtectionStandard IP301, Option IP54Standard IP30
CleanroomOption ISO5N/A
MountingFloor
ControllerOmniCore E10, C30, C90XT
Integrated signal
and power supply
Up to 20 signals2
Integrated air
supply
4 air on outer arm (Max. 6 Bar)2
Integrated
ethernet
One 1000 Base-T ethernet port2
¹ Ballscrew area: IP20
2Options

Description

Designed to meet the requirements of the electronics industry, the IRB 920T/IRB 920 provides the highest levels of speed, accuracy, and repeatability for a range of assembly, picking, and handling tasks. With its class-leading speed and compact design, the IRB 920T/IRB 920 can be installed in various locations to enable fast and cost-effective handling of loads up to 6kg, from single components to assembled products.
