GoFa™ CRB 15000-ABB
TF:
003106-HW-ABB-006
Overview
Go faster. Go further than ever. GoFa’s class-leading speed, safety, and ease of use will take your business to the next level.

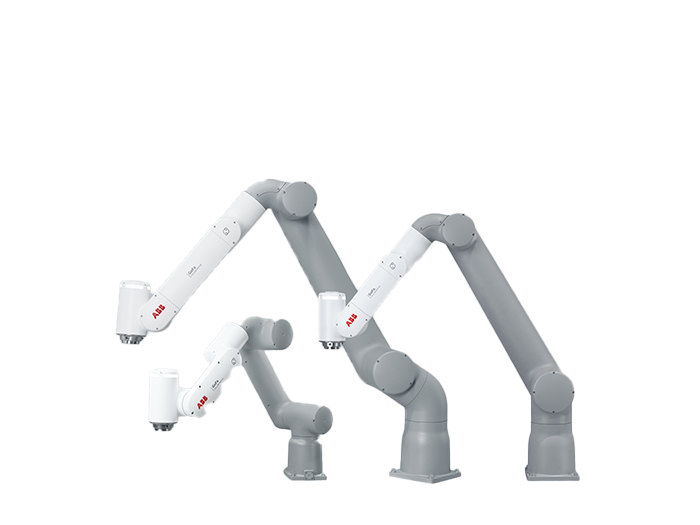

| GoFa 5 | GoFa12 | GoFa10 | |
| Reach (mm) | 950 (wrist) 1050 (flange) | 1270 (wrist) 1370 (flange) | 1520 (wrist) 1620 (flange) |
| Payload (kg) | 5 | 12 | 10 |
| Arm load (kg) | 1 (mounted on axis 4) | 1 (mounted on axes 2, 3, or 4) | 1 (mounted on axis 2, 3 or 4) |
| Number of axes | 6 | 6 | 6 |
| Protection | IP54 | IP67 | IP67 |
| Mounting | Any angle, including table mounting, wall mounting, and ceiling mounting | ||
| Controller | OmniCore C30 | ||
| Customer power supply | 24V/2A supply | ||
| Customer signals | 4 signals (for IO, Fieldbus, or Ethernet) | ||
| Tool flange | Standard ISO 9409-1-50 | ||
| Functional safety | SafeMove Collaborative included all safety functions certified to Category 3, PL d | ||

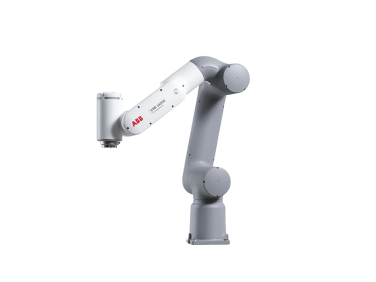

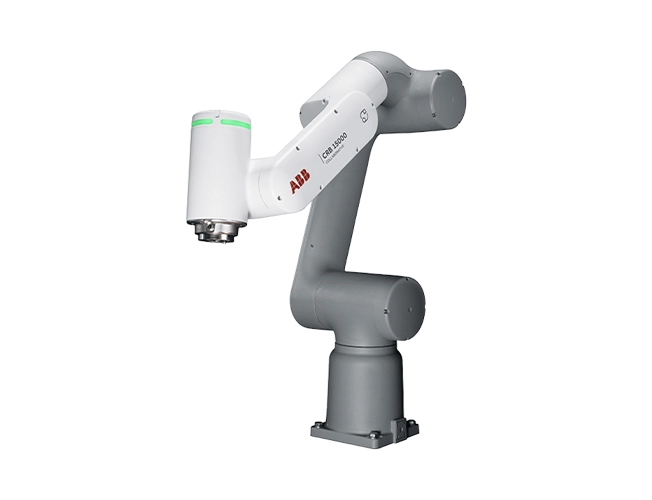

GoFa™ CRB 15000 is a new collaborative robot for close and safe collaboration between humans and robots. GoFa incorporates a range of features that allow it to be used safely alongside human workers without the need to build bulky barriers. Designed for handling up to 5 Kg, GoFa has integrated torque sensors in each of each six joints offering superior power and force-limiting performance. Ease-of-use is in focus here, with enhanced interaction capabilities, superior lead through, and Wizard easy programming, anyone can start using this robot right away!
