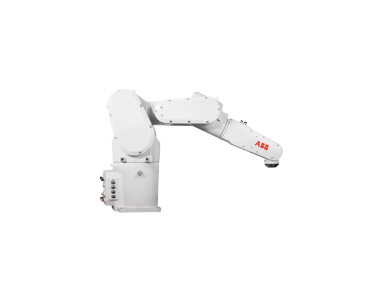

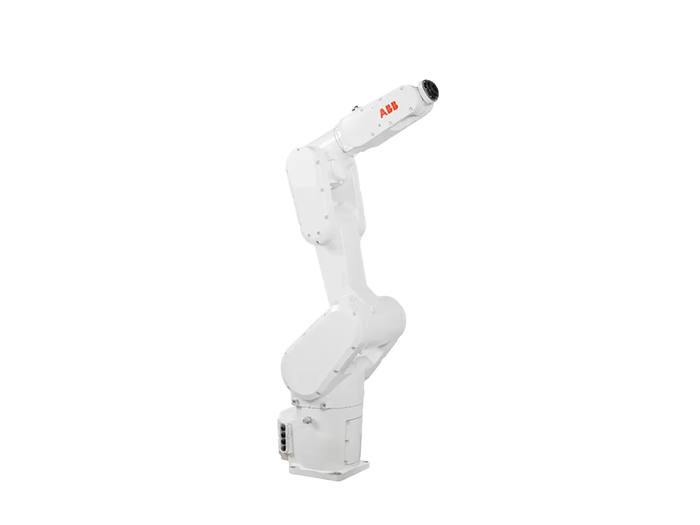

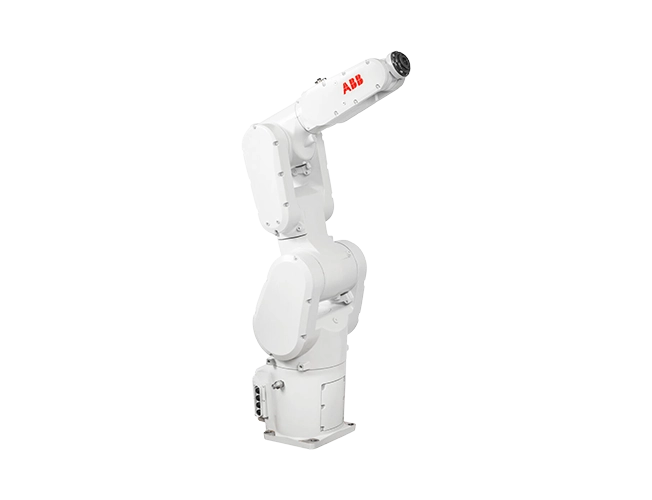

Articulated Robot IRB 1300-ABB
TF:
003107-HW-ABB-007
Overview
Go faster. Go further than ever. GoFa’s class-leading speed, safety, and ease of use will take your business to the next level.

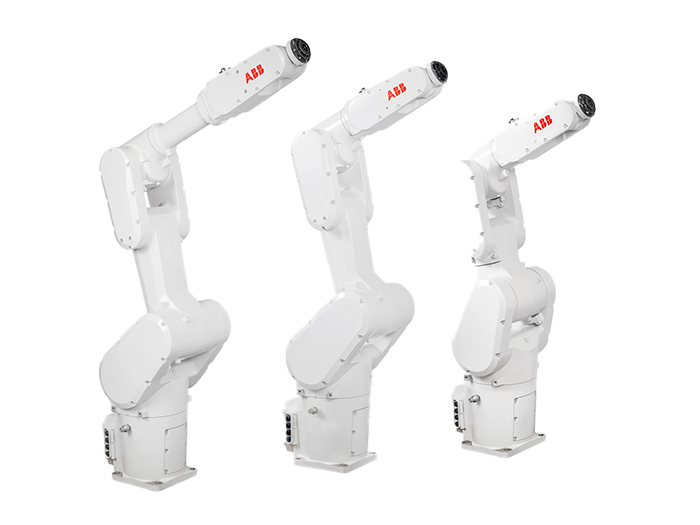

| Robot version | Reach (mm) | Payload (kg) | Armload (kg) |
| IRB 1300-11/0.9 | 900 | 11 | 1 |
| IRB 1300-10/1.15 | 1150 | 10 | 0.5 |
| IRB 1300-7/1.4 | 1400 | 7 | 0.5 |
| IRB 1300-12/1.4 | 1400 | 12 | 0.5 |
| Number of axes | 6 | ||
| Protection | Standard IP40, Option: IP67, Foundry Plus 2 | ||
| Cleanroom | Option ISO 4 | ||
| Mounting | Any angle1 | ||
| Controllers | OmniCore | ||
| Integrated signal and power supply | Up to 24 Signals (C1+C2+C3) on the wrist (optional) | ||
| Integrated air supply | 6 x 4 air on the wrist (Max. 6 Bar)² | ||
| Integrated ethernet | One 1000 Base-T ethernet port² | ||
GoFa™ CRB 15000 is a new collaborative robot for close and safe collaboration between humans and robots. GoFa incorporates a range of features that allow it to be used safely alongside human workers without the need to build bulky barriers. Designed for handling up to 5 Kg, GoFa has integrated torque sensors in each of each six joints offering superior power and force-limiting performance. Ease-of-use is in focus here, with enhanced interaction capabilities, superior lead through, and Wizard easy programming, anyone can start using this robot right away!
