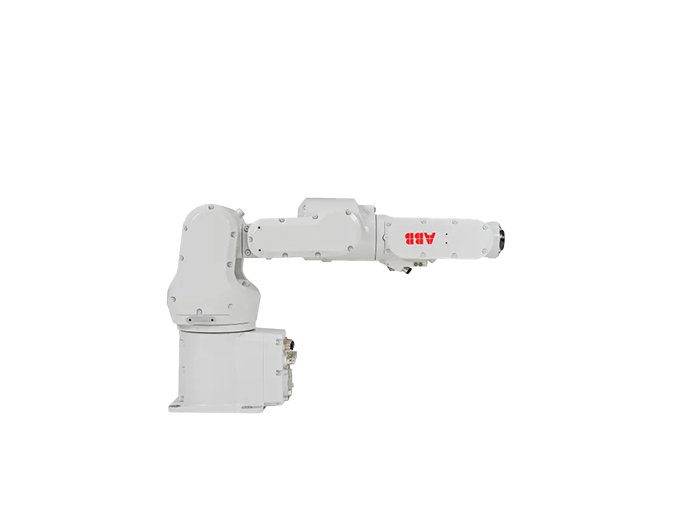

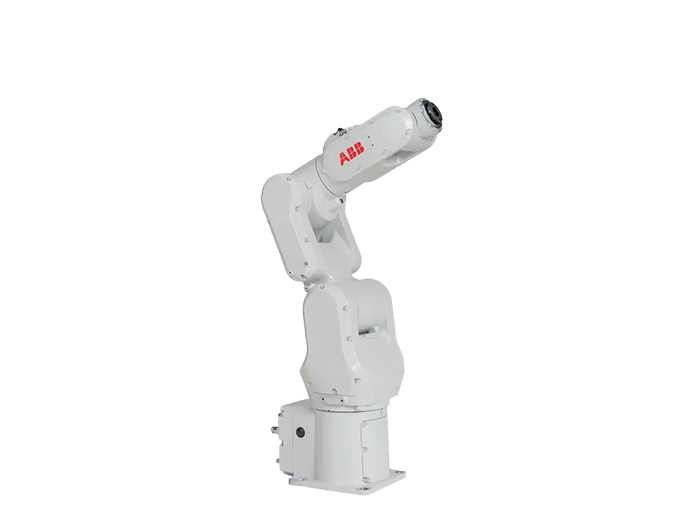

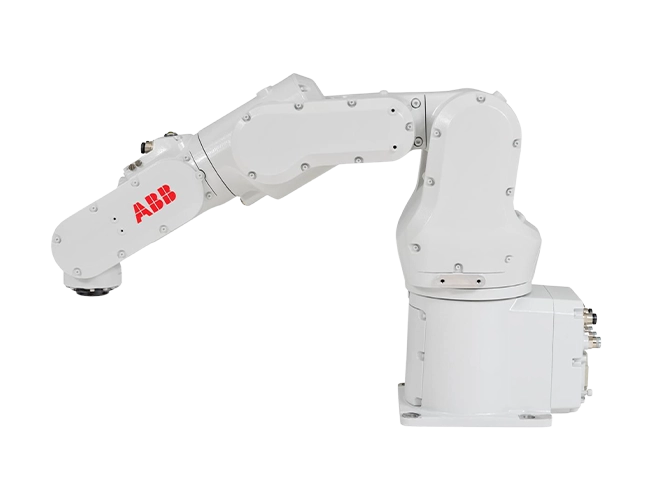

Articulated Robot IRB 1100-ABB
-
NG # 003108-HW-ABB-008
Manufactured by:
The most compact and fast robot ever. IRB 1100 offers exceptional performance in confined spaces in various environments. Further expanding’s small robot portfolio, IRB 1100 provides 35% increased productivity and up to 10% space savings.
Specification
Robot version Reach
(m)Payload
(kg)Armload

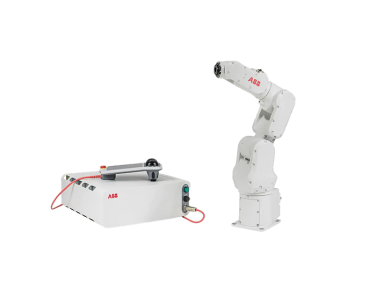

(kg)IRB 1100-4/0.475 0.475 4 0.5 IRB 1100-4/0.58 0.58 4 0.5 Number of axes 6 Protection Standard IP40. Option IP67 Cleanroom Option ISO 4 Mounting Any angle¹ Controller OmniCore E10, C30, C90XT Integrated signal
and power supplyUp to 16 Signals (C1+C2)
on wrist²Integrated air supply 4 air on the wrist (Max. 6 Bar)² Integrated ethernet One 1000 Base-T ethernet
Port²
Description
IRB 1100 - The most compact and fast robot ever
With a 10 percent smaller footprint and 20 percent lighter than IRB 120, the IRB 1100 can be installed in areas with restricted space, including existing production lines, for greater production flexibility. The IRB 1100 is unique, offering a 4kg payload and reaching below 500mm, while offering best-in-class repeatable accuracy. The IRB 1100 provides a clean room version, setting a new benchmark and going to be able to support cleanroom teams throughout the industry, enabling them to make the most of automation in these demanding environments, including faster cycle times and improved productivity, even in confined spaces.
