ABB SCARA Robot IRB 930
TF:
003101-HW-ABB-001
Overview
Unleash precision and speed with high-payload 12 or 22-kg SCARA robots for increased throughput
| Robot version | IRB 930- 12/0.85 | IRB 930- 12/1.05 | IRB 930- 22/1.05 |
| Reach (m) | 0.85 | 1.05 | 1.05 |
| Payload (kg) | 12 | 12 | 22 |
| Number of axes | 4 | ||
| Protection | Standard IP301 | ||
| Mounting | Floor | ||
| Controller | OmniCore E10, C30, C90XT | ||
| Integrated signal and power supply | Up to 20 signals2 | ||
| Integrated air supply | 4 air on outer arm (Max. 6 Bar)2 | ||
| Integrated ethernet | One 1000 Base-T ethernet port2 | ||
| ESD compliance IEC 61340-5-1-2016 ANSI/ESD S20.20-2021 | |||

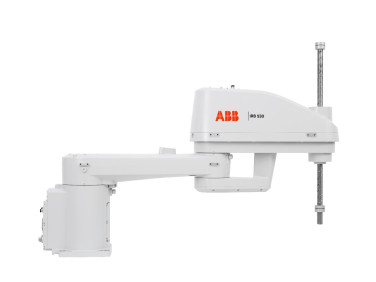

The IRB 930 is a 12-kg or 22-kg high payload SCARA robot that boosts
throughput by up to 10% with class-leading speed, accuracy, internal cabling, and extraordinary downward force.
IRB 930 SCARA delivers high performance across all market segments, including electronics, automotive electrical vehicles, solar, and consumer goods. IRB 930 is ideal for fast point-to-point applications, such as assembly, material handling, pick & place, and screw driving.
