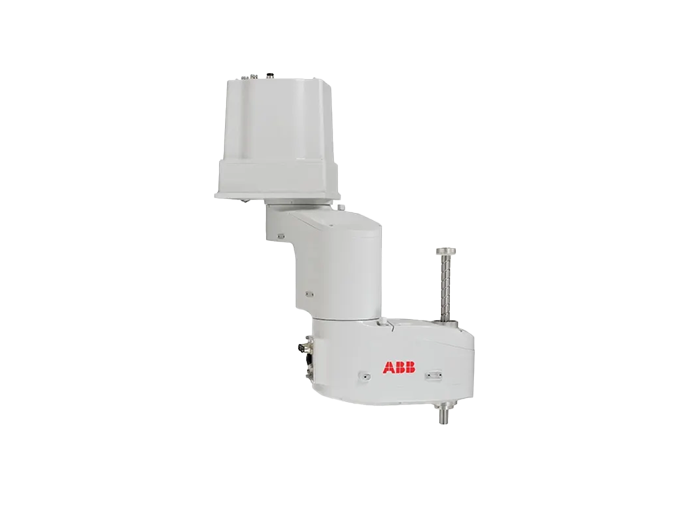

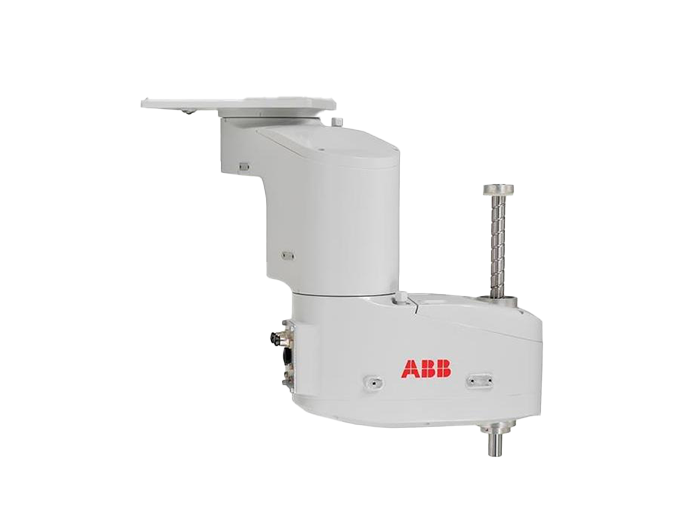

ABB-SCARA Robot IRB 910INV Increasing assemble flexibility
TF:
003103-HW-ABB-003
Overview
Fast, cost-effective and, because it’s from ABB, accurate. The ceiling-mounted SCARA offers space savings and increased assembly flexibility.
| Robot version | Reach (m) | Payload (kg) | Armload (kg) |
| IRB 910INV-3/0.35 | 0.35 | 3 | - |
| IRB 910INV-6/0.55 | 0.55 | 6 | - |
| Number of axes | 4 | ||
| Protection | Standard: IP3O1. Option IP54 | ||
| Cleanroom | Option: ISO1 | ||
| Mounting | Inverted | ||
| Controller | OmniCore E10, C30, C90XT | ||
| Integrated signal and power supply | 8 signals on outer arm² | ||
| Integrated air supply | 4 air on outer arm (Max. 6 Bar)² | ||
| Integrated ethernet | 1 Gbit/s port2 | ||
ABB’s new ceiling-mounted IRB 910INV robot is designed to increase the space efficiency and flexibility of each cell and support the performance of complex tasks even in confined spaces. By mounting the IRB 910INV on the ceiling, manufacturers can increase the space efficiency and flexibility of each cell and do more complex tasks even in confined spaces. Moreover, the IRB 910INV robot can collaborate with other robots and machines, substantially boosting productivity.
