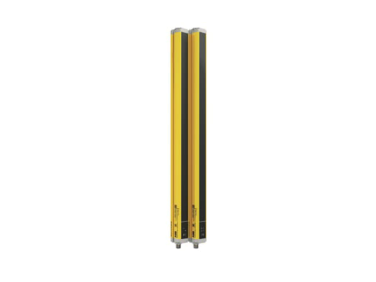

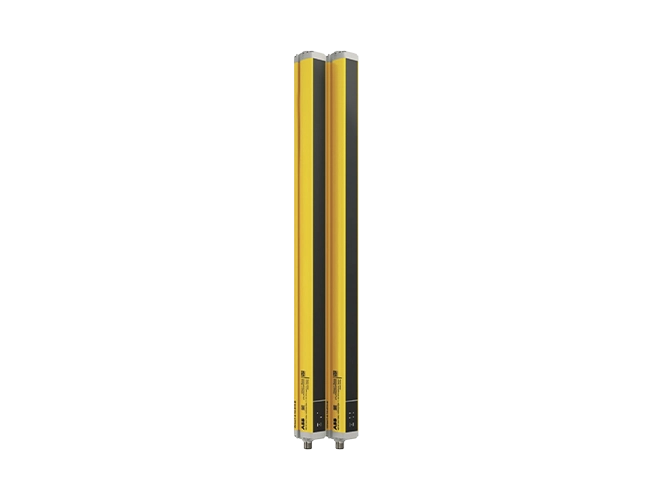

ABB Orion1 Light Curtain, Sender & Receiver, 64 Beam(s), 30mm Resolution
TF:
003121-HW-ABB-021
Overview
The Orion1 light curtains from ABB are supplied with a transmitter and receiver. They can be installed close to a dangerous machine and are designed for finger or hand detection. The Orion1 is available in two options, a base model and an extended model.
| Range | Orion1 |
| Beam Resolution | 30mm |
| Component Type | Receiver, Sender |
| Safety Type | 4 |
| PL EN ISO 13849-1 | e |
| Number of Beams | 64 |
| Protective Height | 1200mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 19m |
| Maximum Response Time | 21 ms |
| Height | 37mm |
| Supply Voltage | 24 V dc |
| Length | 1283mm |
| Width | 32mm |
| Dimensions | 1283.3 x 32.3 x 36.9 mm |
| Features | 64 Beams, Hand Protection, Type 4 Safety Category |
| Terminal Type | M12 Connector |
| Application | Hand |
No more functions or settings than necessary,A local reset button can be connected directly to the light curtain: no need for cable between the reset button and the electrical cabinet or for an extra control module.
