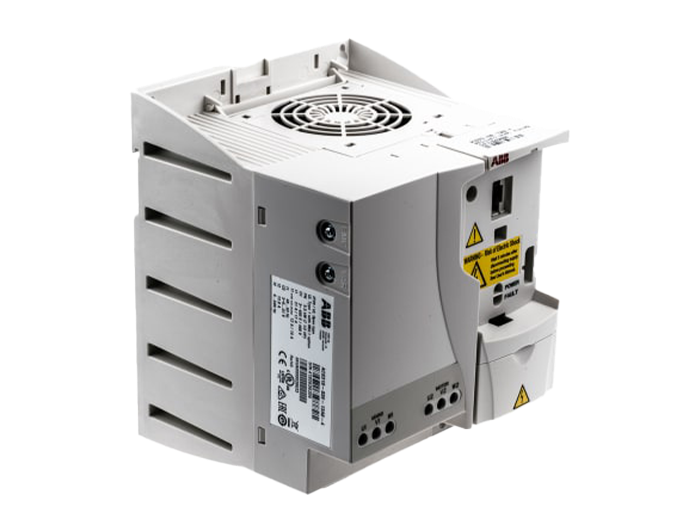

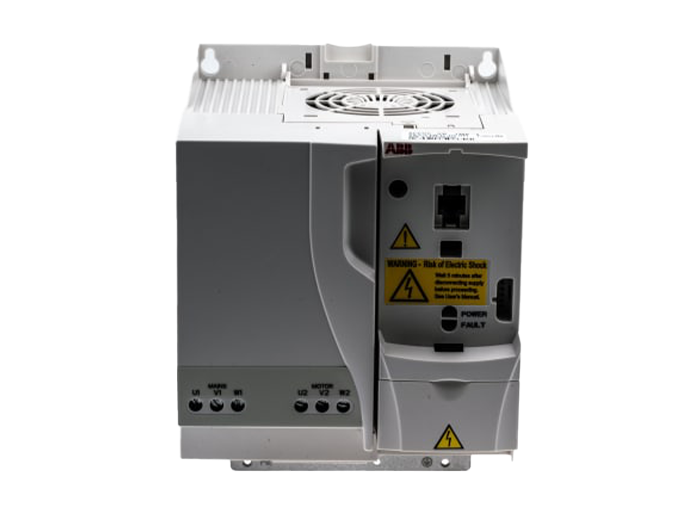

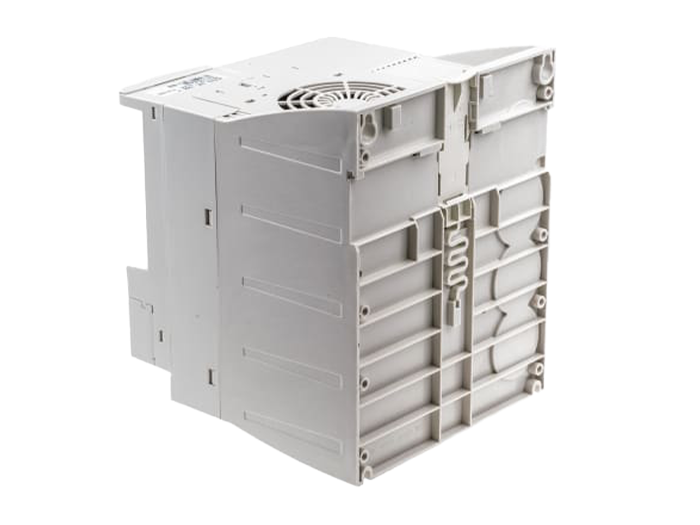

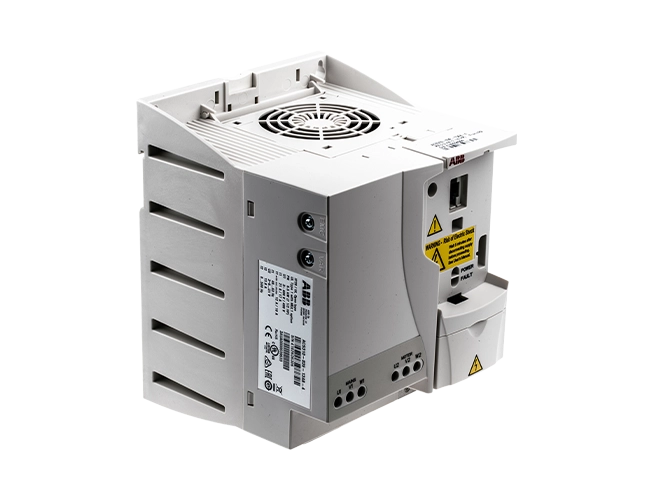

ABB Inverter Drive, 5.5 kW, 3 Phase, 400 V ac, 13.8 A, ACS310 Series

  • NG # 003122-HW-ABB-022

Manufactured by:

This seller generally responds in under 48 hours

Specification

Power Rating5.5 kW
Phase3
Supply Voltage400 V ac
Current Rating13.8 A
SeriesACS310
For Use WithAC Motors
Field Bus Communication TypeModBus
IP RatingIP20
Output Frequency0 → 500Hz
STONo
Drive TypeAC
Mounting TypeModule For Cabinet Building
Filter IncludedYes
InterfaceRS232, RS485
Overall Depth169mm
Special FeaturesIP20 Terminal Protection
Overall Length236mm
Overall Width169mm

Description

Use this inverter drive from ABB to transform DC to AC power. It's a 3-phase unit that delivers efficient regulation of motor speed while optimising energy use. The drive has five digital inputs, allowing your system to receive signals or information from multiple sources. An automatic pipe cleaning feature triggers actions to periodically clear out blockages, preventing unexpected downtime and ensuring smooth machine operation without manual intervention. Whether it's hooked up to a fan, pump or a variable-speed device, this unit adapts its performance to match the needs of your application.
