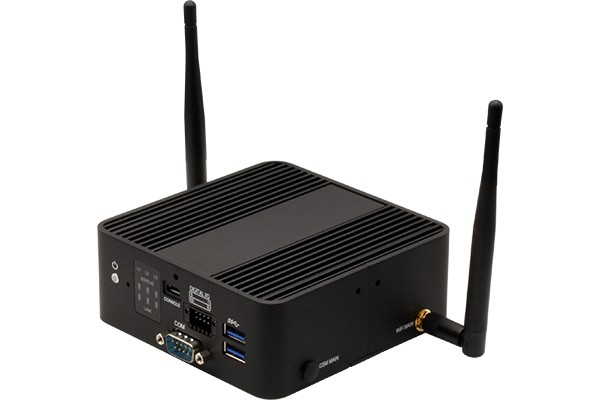

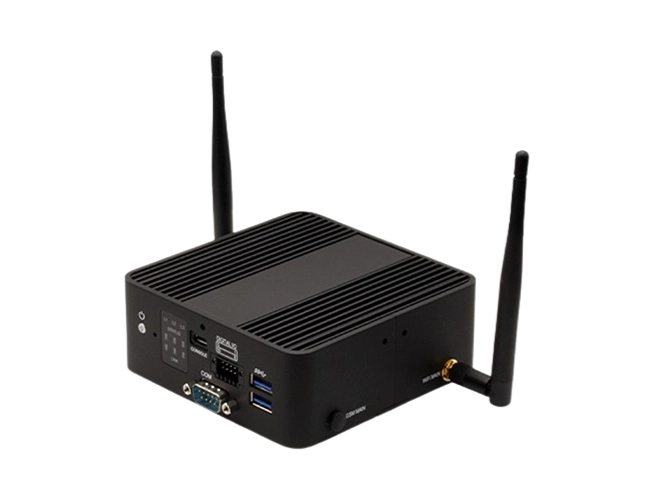

FWS-2275 Desktop 3 LAN Ports Network Appliance
-
NG # 003635-HW-AAEON-O35
Manufactured by:
The AAEON FWS-2275 network appliance is a compact system built to power a range of applications for industrial networks. FWS-2275 is designed for SD-WAN networks, and can be deployed as an Edge Computing or Industrial IoT Gateway (IIoT).
Specification
SYSTEM FORM FACTOR Desktop Network Appliance PROCESSOR Intel® Celeron® Processor N3350 SoC CHIPSET SoC SYSTEM MEMORY Onboard LPDDR4, 2GB NETWORK ETHERNET Intel® i211 GbE x 3 BYPASS — DISPLAY GRAPHICS CONTROLLER Intel® HD graphics integrated STORAGE HDD — CF/CFAST/MSATA Onboard eMMC 16GB
SATA III Port x 1 for SATA DOM
Micro SD card Reader x1INTERNAL/ EXPANSION INTERFACE PCIE SLOT — MINI-PCIE SLOT Mini-Card Full Size Slot with SIM Socket x 1 (USB 2.0; PCIe co-lay with LAN 3) KB MOUSE — USB USB 3.2 Gen 1 x 2 MISCELLANEOUS RTC Internal RTC WATCHDOG TIMER 1~255 steps by software programmable SOFTWARE BUTTON GPIO Programmable push button x 1 TPM — GPIO 4 bits input, 4 bits output FAN — MTBF (HOURS) 550,521 Hours COLOR Black PHYSICAL & ENVIRONMENTAL SPEC POWER REQUIREMENT 9~24 V DC Power OPERATING TEMPERATURE 32°F ~ 122°F (0°C ~ 50°C ) STORAGE TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C) OPERATING HUMIDITY 10%~80% relative humidity, non-condensing STORAGE HUMIDITY 10%~80% @40°C; non-condensing VIBRATION 0.5 Grms/ 5 ~ 500Hz / operation
1.5 Grms/ 5 ~ 500Hz / non operationSHOCK 10 G peak acceleration (11 m sec. duration), operation

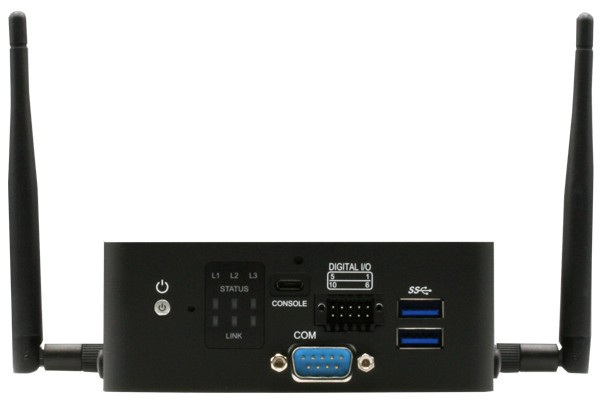

20 G peak acceleration (11 m sec. duration), non operationDIMENSION (W X D X H) 4.53" x 4.53" x 1.73" (115mm x 115mm x 44mm) I/O FRONT PANEL USB 3.2 Gen 1 Ports x 2
LED’s (3 x TOP Row, 2 x Bottom Row)x 6
Power Button with LED integrated x 1
Micro-USB Console Port x 1
RS-232/422/485 x 1
GPIO 8 bits, 4-bits input, 4-bits output

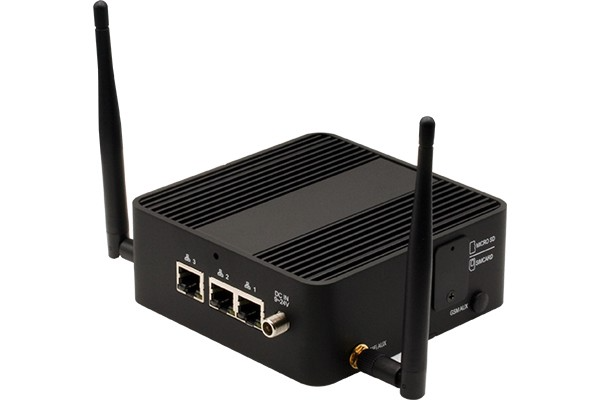

Reset button x 1REAR PANEL 1GbE RJ45 Ports x 3
Power Input connector, lockable x 1Left I/O SIM Slot x 1 + Micro-SD Slot with Cover x 1
WiFi Antenna Connector x 1
LTE Antenna ConnectorRight I/O WiFi Antenna Connector x 1
LTE Antenna Connector
Description
The Intel® Celeron® N3350 processor (formerly Apollo Lake) features built-in Intel® AES-NI, providing secure data encryption with faster processing than standard AES. FWS-2275 can also handle network applications such as UTM, firewall, and more.
