AAEON RTC-710RK 7” Rugged Tablet
-
NG # 003626-HW-AAEON-O26
Manufactured by:

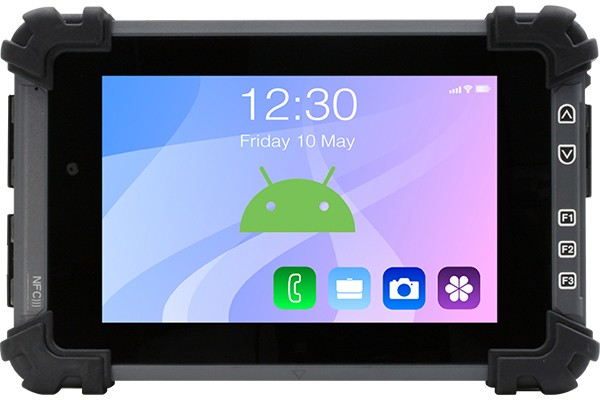

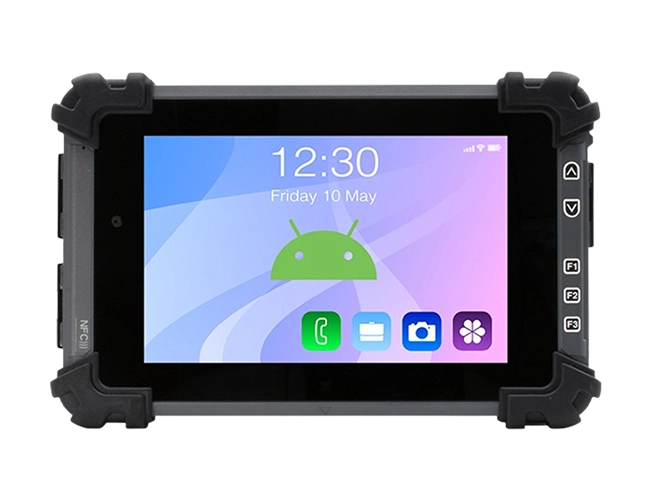

RTC-710RK 7” Rugged Tablet ARM-based Android™ with 1.6 GHz Quad Core Processor
Specification
System Architecture Processor Rockchip RK3399K Processor (Quad-Core A53 1.6GHz & Dual-Core A72 2.0GHz) Operating System Android™ 11 (No NFC function) Memory Onboard LPDDR4 2GB Storage eMMC 16GB Display 7" WXGA (1280x800) 700-nit TFT LCD
With Projected Capacitive Multi-Touch ScreenI/O Ports SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1,
Audio jack x 1 (3.5mm), DC-in jack x 1,
Micro-SD card slot x 1, USB 2.0 Type-A x 1Communication Wi-Fi 802.11 b/g/n, Bluetooth v4.2 (EDR + BLE) Navigation GPS + GLONASS (Default) CAMERA 8MP front camera, 8MP rear camera with flash Sensors G-sensor, E-compass, Gyro-sensor, Light-sensor Expansion Slot M.2 slot x 1, Docking connector: USB 3.2 Gen 1 x 1 HF RFID — Audio Speaker x 1 PHYSICAL KEY F1(Audio on/off), F2 (Screenprint), F3 (Barcode Scanner Trigger), Volume Up, Volume Down Mechanical Color Dark Grey Dimension (W x H x D) 8.65" x 5.46" x 0.94" (219.8 x 138.8 x 23.9mm) Gross Weight 1.54 lb (0.7 Kg) based on configurations Environmental Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F) for high-brightness version Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F) Humidity MIL-STD-810G Method 507.5 Environmental Sealing IP65 Vibration MIL-STD-810G Method 514.6 Drop MIL-STD-810G Method 516.6 Procedure IV
Height of Drop: 150 cm 5 ftSHOCK MIL-STD-810G ESD Air charge: +/- 8KV, Contact charge: +/- 4KV Certifications and Standards UL62368-1, CE EMC, CE RED WiFi 2.4G+5G; CB; FCC EMC, FCC RF WiFi 2.4G;UKCA / UL; TELEC WiFi / LTE Power Supply AC / DC Adapter AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3.34A/ 40W Battery Life Li-ion Battery 8-hour battery life based on test configurations Master Battery 7.4V, 4420mAh, 32.7W Slave Battery Hot-swappable battery: 7.4V, 1530mAh, 11.3W Display LCD 7” TFT-LCD / 16:10, with LED backlight Resolution 1280 x 800 Maximum Color N/A Dot Size 0.03925(H) X 0.11775(V) mm Brightness 700 nits Viewing Angle Horizontal: 178°, Vertical: 178° (Typical) Touch Screen TOUCHSCREEN TYPE 7" Projected Capacitive Multi-Touch Screen (700 nits with 10 points) Light Transmission Min. 85%
Description
The RTC-710RK is designed to bring better performance, powered by the 6-core Rockchip RK3399 ARM processor, offering stable and efficient operation thanks to its RISC based construction. The RTC-710RK pairs this innovative processor with up to 4 GB of memory and up to 128 GB of storage to power a range of applications. The RTC-710RK utilizes the Android 8.1 (Oreo) operating system, which can be easily customized for a user’s specific needs.
