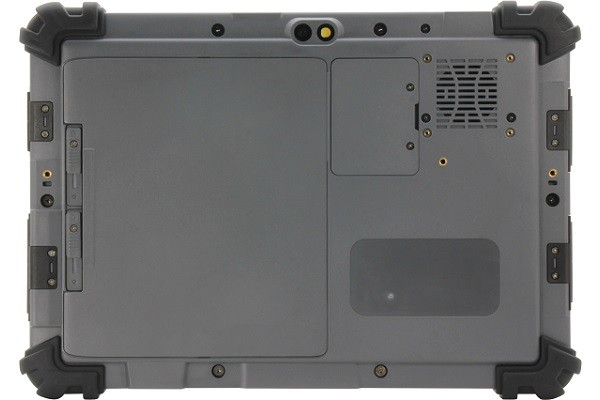

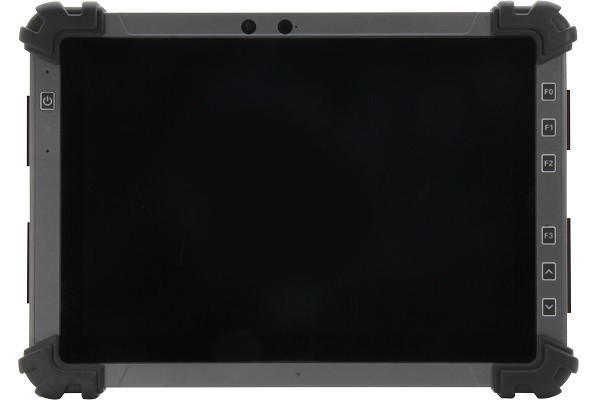

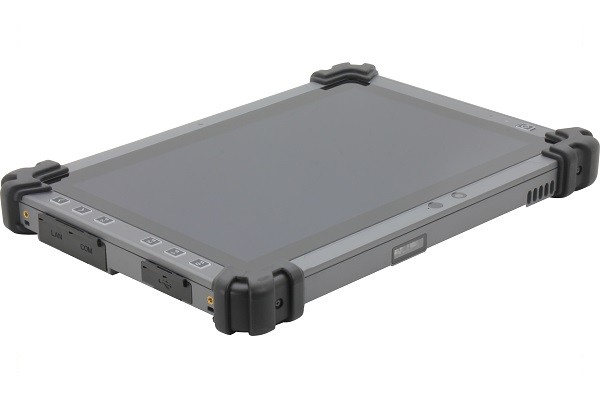

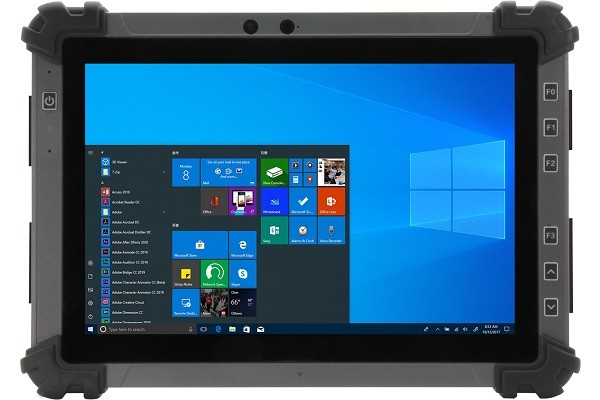

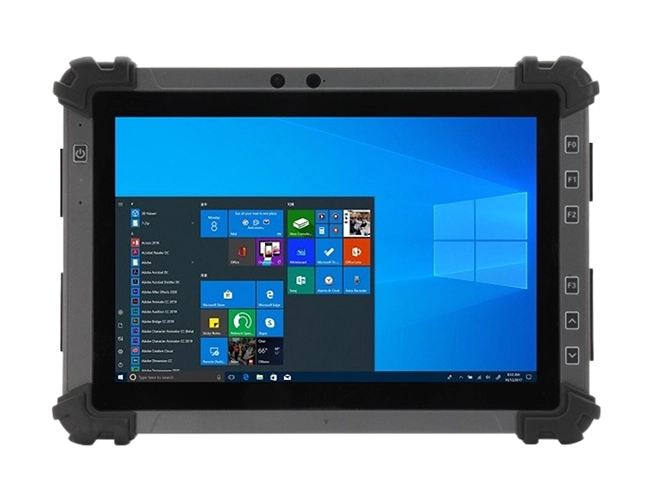

AAEON RTC-1020 10.1" Rugged Tablet
-
NG # 003628-HW-AAEON-O28
Manufactured by:
AAEON RTC-1020 10.1" Rugged Tablet Featuring 11th Gen Intel® Core™/Celeron® Processors
Specification
SYSTEM Architecture PROCESSOR 11th Gen Intel® Core™ i3-1115G4E Processor SoC OPERATING SYSTEM Windows® 10 IOT Enterprise SAC / Windows® 11 IOT Enterprise GAC (Optional) MEMORY Onboard LPDDR4X, 8GB (Default) STORAGE M.2 SSD, Default 64GB DISPLAY 10.1" FHD (1920 x 1200) 850 nit TFT LCD with Projected Capacitive Multi Touch Screen I/O PORT Micro-HDMI port x 1, SIM card slot x 1, Micro-SD card slot x 1
Audio jack x 1 (3.5mm), USB 3.2 Gen 2 x 2 (Type-C x 1, Type-A x 1)
USB 2.0 x 2, DC-in Jack x 1, RS-232/422/485 COM Port x 1
10/100/1000 Base-T RJ45 x 1COMMUNICATION Wi-Fi 802.11 a/b/g/n/ac
Bluetooth v5.1 (EDR + BLE)
Intel AC9260NAVIGATION Up to 3 GNSS, GPS + Galileo (Default), GLONASS, BeiDou (Optional) CAMERA 5MP front camera, 8MP rear camera with flash SENSOR G-sensor, E-compass, Gyro-sensor, Light-sensor EXPANSION SLOT M.2 M-Key for SSD (PCIe [x4]/ SATA 6Gb/s)
M.2 E-Key for WiFi/BT (PCIe [x1]/USB 2.0)
M.2 B-Key for LTE (USB 2.0)
Docking Connector: USB 3.2 Gen 2 x 1Barcode Scanner 2D Barcode scanner, OPTICON MDI-4100-USB HF RFID ISO 15693 (R/W), ISO 18092 (R/W), ISO 14443-A (R/W), ISO 14443-B (Only Read UID), Depend on card type Audio Speaker x 1 PHYSICAL KEY F0 or Windows (Windows Start Key)
F1 (BCR Trigger Button (When BCR is enabled))
F2 (Screenprint), F3 (Ctrl+Alt+Del)
Volume Up (Speaker Volume Up)
Volume Down (Speaker Volume Down)MECHANICAL COLOR Black & Dark Grey DIMENSIONS (W X H X D) 10.71" x 7.48" x 0.94" (272.0mm x 190.0mm x 24.35mm) GROSS WEIGHT 3.3 lb. (1.5Kg) based on configurations ENVIRONMENTAL OPERATING TEMPERATURE -4°F ~ 122°F (-20°C ~ 50°C) STORAGE TEMPERATURE -22°F ~ 158°F (-30°C ~ 70°C) HUMIDITY 0% ~ 90% relative humidity, non-condensing ENVIRONMENTAL SEALING IP65 VIBRATION MIL-STD-810H: 2019, 514.8 Procedure I, Table 514.8C-I
Category 4 common carrierDROP MIL-STD-810H: 2019, 516.8 Procedure I
Drop height: 122cm
Number of Drop: 26 times, for all surfaces, edges and corners
Condition: Based on 2" plywood over concreteSHOCK MIL-STD-810H: 2019, 516.8 Procedure I ESD Air charge: +/- 8KV, Contact charge: +/- 4KV CERTIFICATIONS AND STANDARDS CE EMC, CE RED WiFi 2.4G+5G / LTE; LVD; FCC EMC, FCC RF WiFi 2.4G+5G; UKCA; TELEC WiFi POWER SUPPLY AC/DC ADAPTER AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 19V/ 3.42A/ 65W BATTERY LIFE Li-ion Battery 6-hour battery life based on test configurations MASTER BATTERY Hot-swappable battery: 14.4V, 2270mAh, 32.7W SLAVE BATTERY Hot-swappable battery: 14.4V, 2270mAh, 32.7W Display LCD 10.1" TFT-LCD Display RESOLUTION 1920 x 1200 MAX. COLORS 16.7M DOT SIZE — BRIGHTNESS 850 nits VIEWING ANGLE Horizontal: 170° (Typical), Vertical: 170° (Typical) TOUCH SCREEN TOUCH TYPE Projected Capacitive Multi-Touch Screen (PCT) LIGHT TRANSMISSION Min. 85%
Description
Faster, more dynamic, and just as tough, the new RTC-1020 introduces more sophisticated functionality to AAEON’s rugged tablet product line. With generational upgrades in battery capacity, screen brightness, wireless technology, camera quality, and processing power, the RTC-1020 is built for continuous use in any environment; from the construction site to the aircraft hangar. With the RTC-1020, users can expect exceptional utility paired with world-class features in the same durable, rugged form to reliably and efficiently manage projects across industries.
