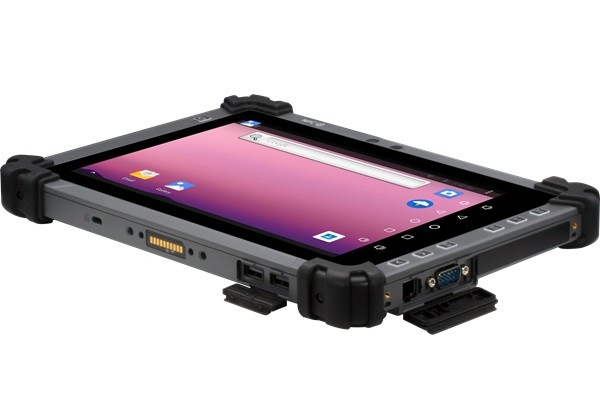

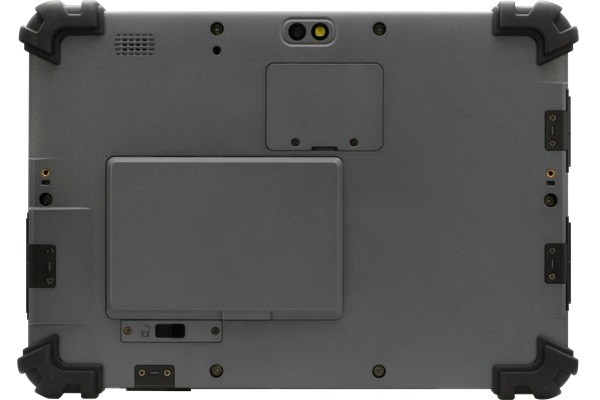

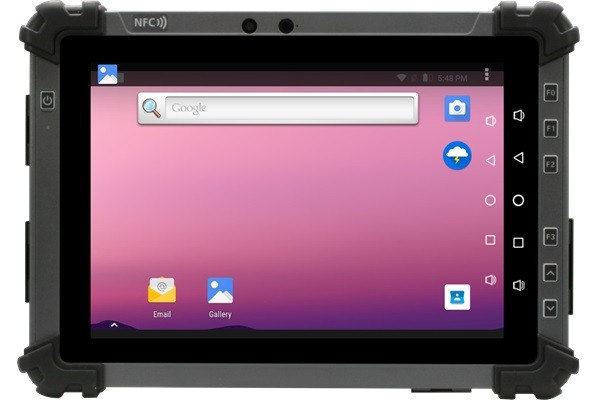

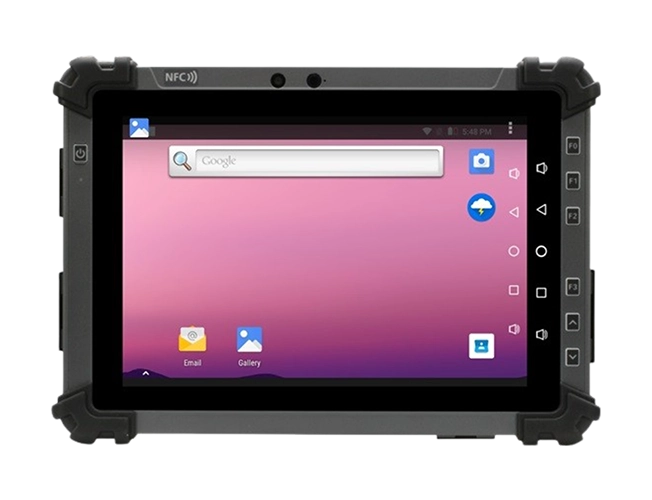

AAEON RTC-1010RK 10.1" Rugged Tablet
-
NG # 003625-HW-AAEON-O25
Manufactured by:
RTC-1010RK 10.1" Rugged Tablet Featuring Rockchip RK3399 With Android™ 11
Specification
System Architecture Processor Rockchip RK3399 Processor (Quad-Core Arm® Cortex®-A53, 1.6 GHz & Dual-Core Arm® Cortex®-A72, 2.0 GHz) Operating System Android™ 11 Memory Onboard LPDDR4 Memory, 4GB (Default) Storage eMMC 64GB Display 10.1" WXGA (1280 x 800) 300-nit TFT LCD with Projected Capacitive Multi-Touch Screen I/O Ports Micro HDMI Port x 1
SIM Card Slot x 1
MicroSD Card Slot x 1
Audio Jack x 1 (3.5mm)
USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2
DC-in Jack x 1
RS-232/422/485 COM Port x 1
10/100/1000 Base-T RJ-45 x 1Communication Wi-Fi 802.11 a/b/g/n/ac, Bluetooth v5.2 (EDR + BLE) Navigation GPS + GLONASS (Default), BeiDou (Optional) Camera 8MP Front Camera
8MP Rear Camera with flashSensor G-sensor, E-compass, Gyro-sensor, Light-sensor Expansion Slot M.2 3042 B-Key (LTE)
Docking connector: USB 2.0 x 1HF RFID (Optional) ISO 15693 (R/W), ISO 18092 (R/W), ISO 14443-A (R/W)
ISO 14443-B (Only Read UID), Depend on card typeAudio Speaker x 1 Physical Key F0, F1 (BCR Trigger Button (When BCR is enabled), F2 (Screenprint), F3 (Audio On/Off), Volume Up (Speaker Volume Up), Volume Down (Speaker Volume Down) Mechanical Color Black & Dark Grey Dimension (W x H x D) 272.0mm x 190.0mm x 20.4mm (10.71" x 7.48" x 0.80") Gross Weight 2.2 lb (1.0 Kg) based on configurations Environmental Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F) Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F) Humidity 0% ~ 90% relative humidity, non-condensing Environmental Sealing IP65 Vibration MIL-STD-810H: 2019, 514.8 Procedure I, Table 514.8C-I
Category 4 common carrier
5~500Hz
X, Y, Z axes, 1-hour duration for each axisDrop MIL-STD-810H: 2019, 516.8 Procedure IV
Drop height: 122cm
Number of Drop: 26 times, for all surfaces, edges and corners
Condition: Based on 2" plywood over concreteShock MIL-STD-810H: 2019, 516.8 Procedure I ESD Air charge: +/- 8KV, Contact charge: +/- 4KV Certifications and Standards CE EMC, CE RED WiFi 2.4G+5G / LTE, LVD, FCC EMC, FCC RF WiFi 2.4G+5G, UKCA, TELEC WiFi Power Supply AC / DC Adapter AC 100V ~ 240 V, 50Hz ~ 60Hz, Output: 12V/3A/36W Battery Life Li-ion Battery 8-hour battery life based on test configurations Master Battery Hot-swappable battery: 14.4V, 2270mAh, 32.7W Slave Battery 7.4V, 1530mAh, 11.3W Display LCD 10.1" TFT-LCD Display Resolution 1280 x 800 Maximum Color 16.7M Dot Size 0.1692mm (H) x 0.1692mm (W) Brightness 300 nits Viewing Angle Horizontal: 170°, Vertical: 170° (Typical) Touch Screen Touch Type Projected Capacitive Multi-Touch Screen (PCT) Light Transmission Min. 85%
Description
Combining the Rockchip RK3399 platform with an Android™ 11 operating system, AAEON’s new RTC-1010RK introduces dynamic processing capabilities and greater UI customization to military-strength hardware for the ultimate rugged tablet solution. Tough enough for continuous operation in the factory and on the go, yet powerful enough to manage even complex tasks on a user-friendly platform, the RTC-1010RK is the tablet you can take anywhere.
