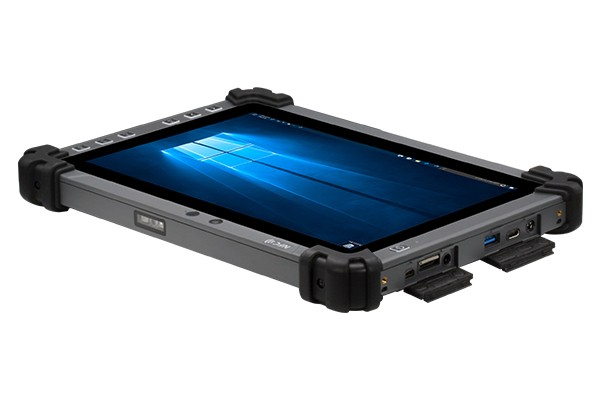

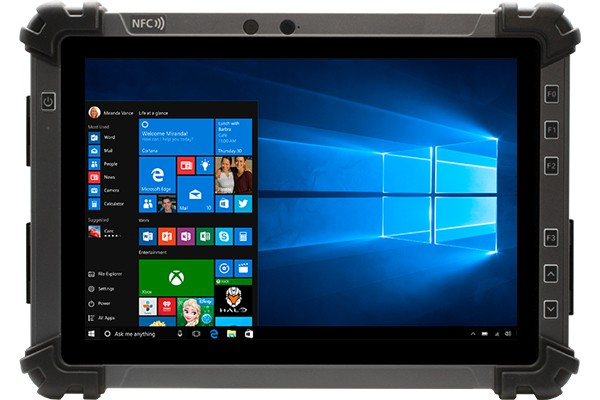

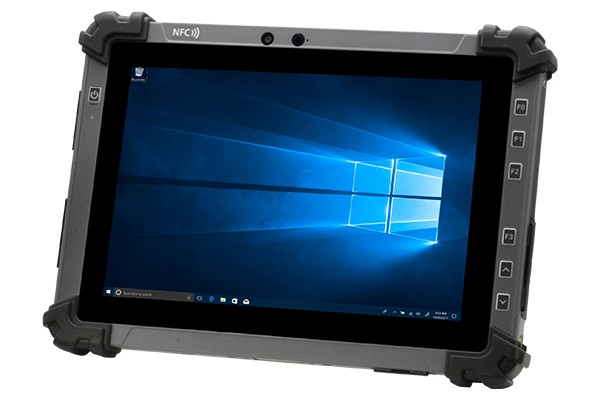

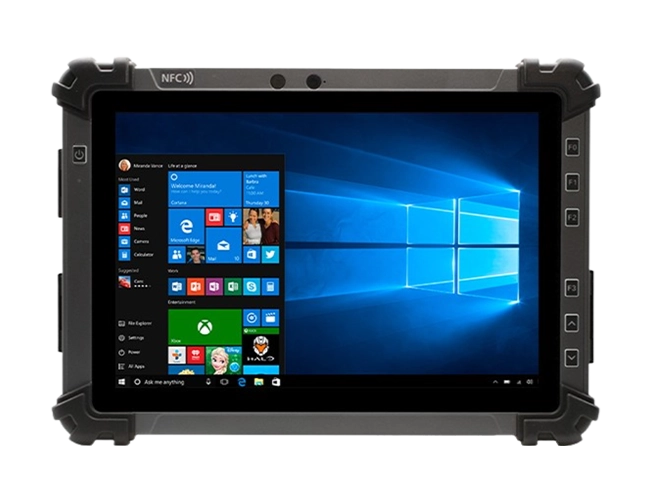

AAEON RTC-1010 10.1” Waterproof Ruggedized Tablet
-
NG # 003627-HW-AAEON-O27
Manufactured by:
RTC-1010 10.1” Waterproof Ruggedized Tablet Features with Intel® N3350/N4200 Processor with Windows
Specification
System Architecture Processor Intel® Pentium® N4200 1.1GHz Quad core up to 2.5GHz Operating System Windows® 10 IOT Enterprise SAC Memory Onboard DDR3L 4GB Storage eMMC 64GB Display 10.1" WXGA (1280x800) 300-nit TFT LCD
With Projected Capacitive Multi-Touch ScreenI/O Port Micro-HDMI port x 1
SIM card slot x 1
Micro-SD card slot x 1
Audio jack x 1 (3.5mm)
USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2
DC-in jack x 1
RS-232/422/485 COM Port x 1
10/100/1000 Base-T RJ45 x 1
Smart card reader x 1 (Optional, Without IP protection)Sensors G-sensor, E-compass, Gyro-sensor, Light-sensor Navigation Up to 3 GNSS, GPS + Galileo(Default), GLONASS, BeiDou (Optional) Camera 2MP front camera, 8MP rear camera with flash Communication Wi-Fi 802.11 b/g/n, Bluetooth v5.1(EDR+BLE), Intel AC9260 Expansion Slot Inside M.2 slot x 1 (For WiFi module)
Mini-card slot x 1 (For LTE module)
Docking connector: USB 2.0 x 1Barcode Scanner 2D Barcode scanner, OPTICON MDI-4100-USB HF RFID ISO 15693 (R/W)
ISO 18092 (R/W)
ISO 14443-A (R/W)
ISO 14443-B (Only Read UID)
Depend on card typeAUDIO Speaker x 1 PHYSICAL KEY F0 or Windows (Windows Start Key), F1(BCR Trigger Button (When BCR is enabled), F2(Screenprint), F3(Ctrl+Alt+Del as Soft Reboot), Volume Up, Volume Down Mechanical Color Black & Dark Gray Dimension (W x H x D) 272.0 x 190.0 x 20.4 mm (10.71" x 7.48" x 0.80") Gross Weight 2.2 lb (1.0 Kg) based on configurations Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C) Storage Temperature -67°F ~ 158°F (-55°C ~ 70°C) Humidity 0% ~ 90% relative humidity, non-condensing Environmental Sealing IP65 Vibration MIL-STD-810G-514.6 Procedure I Cat.24, Fig 514.6E-1 & 514.6E-2 (Unit is non-operating)
ASTM 4169-99 Truck Assurance Level II, Schedule E (Unit is non-operating)Drop MIL-STD-810G-516.6, Procedure IV
Drop height: 122 cm
Number of Drop: 26 times, for all surfaces, edges and corners
Condition: Based on 2” plywood over concreteESD Air charge: +/- 8KV, Contact charge: +/- 4KV Certifications and Standards CE EMC, CE RED WiFi 2.4G+5G / LTE, LVD, FCC EMC, FCC RF WiFi 2.4G+5G, IC / UKCA / UL, TELEC WiFi Power Supply AC / DC Adapter AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3A/ 36W Battery Life Li-ion Battery 8-hour battery life based on test configurations Master Battery Hot-swappable battery: 14.4V, 2270mAh, 32.7W Slave Battery 7.4V, 1530mAh, 11.3W Display LCD 10.1" TFT-LCD Display Resolution 1280 x 800 MAX. COLORS 16.7M Dot Size 0.1692 (H) x 0.1692 (V) mm Brightness 300 nit Viewing Angle Horizontal: 170°, Vertical: 170° (Typical) Touch Screen Touch Type Projected capacitive multi-touch screen (PCT) Light Transmission Min 85%
Description
The robust RTC-1010 rugged tablet features an LCD bonded with a scratch-resistant projected capacitive multi-touch screen. The ruggedized tablet is designed to operate in a range of tough conditions, with an operating temperature range of -20°C to 50°C and meets MIL-STD-810G specifications for vibration resistance and drop testing from 122cm. The RTC-1010 boasts waterproof tablet design with its IP65 compliant construction which also keeps out dust and other contaminants.
