AAEON FWS-7541 1U Rackmount Network Appliance
-
NG # 003644-HW-AAEON-O44
Manufactured by:
The FWS-7541 is the newest and most sophisticated addition to AAEON’s Rackmount Network Appliance range. Powered by Intel® Xeon® D-1700 Processors (formerly Ice Lake-D), it offers Intel Xeon-level performance in a more power-efficient way.
Specification
PLATFORM Form Factor 1U Rackmount Platform Network Appliance processor Intel® Xeon® D-1700 Processors Chipset SoC System Memory DDR4 SODIMM x 2 (ECC) NETWORK Ethernet 1GbE RJ-45 x 12 (Intel® I350-AM4 x 3) + up to 10Gb SFP+ x 4 (see note 1) Bypass 2 Pairs LAN Bypass 3.1 NIM Slot NIM Slot x 1 (Optional) DISPLAY Connector VGA from IPMI x 1 (Optional by BOM SKU) STORAGE HDD 2.5” HDD x 2 (default) or 3.5” HDD x 1 (If no NIM module present) EXPANSION/INTERNAL INTERFACE Mini-Card M.2 3052 B-Key x 1 for 4G/5G (USB 3.0 + PCIe) with SIM
M.2 2230 E-Key x 1 (PCIe)IPMI Project base USB USB 3.2 Gen 1 x 2 MISCELLANEOUS RTC Internal RTC Watchdog Timer 1~255 Software Button 1 TPM TPM2.0 SPI GPIO N/A, DIO pin header x 1 (4-in/4-out), optional by BOM SKU Fan System Fan x 1 MTBF (hours) TBD Color Black PHYSICAL & ENVIRONMENTAL SPEC Power Requirement 220W Power Operating Temperature 32°F ~ 104°F (0°C ~ 40°C ) Storage Temperature -4°F~ 140°F (-20°C ~ 60°C) Operating Humidity 10%~80% relative humidity, non-condensing Storage Humidity 0%~80% @40°C; non-condensing Vibration 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive)
1.5 g rms/ 5 ~ 500Hz / non operationSHOCK 10 G peak acceleration (11 m sec. duration), operation

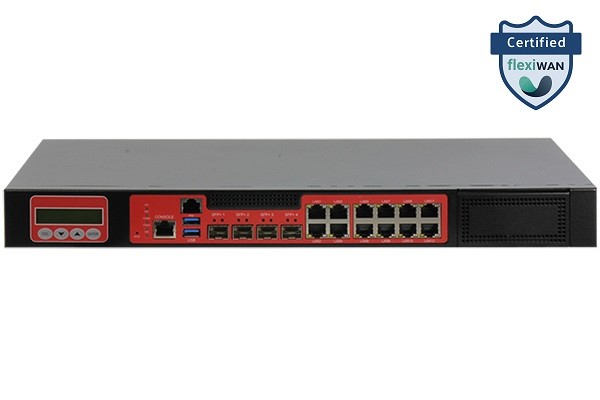

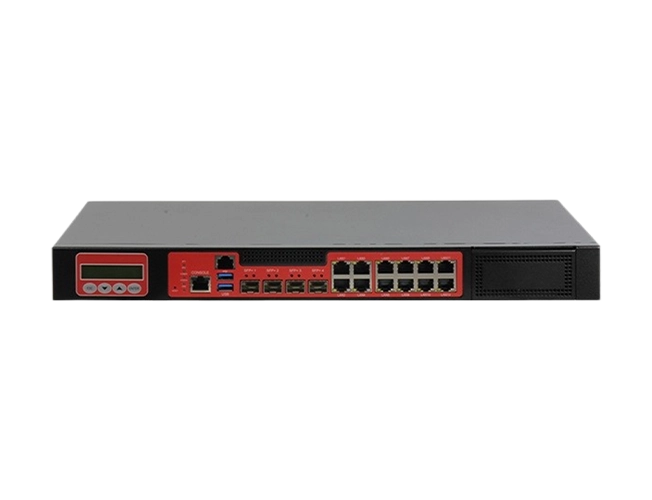

20 G peak acceleration (11 m sec. duration), non operationDimension (W x D x H) 16.93” x 7.87” x1.73”(430mm x 200mm x 44mm) I/O INTERFACE Front Panel 1GbE RJ-45 x 12 (Intel® I350-AM4 x 3) + up to 10GbE SFP+ x 4 (SKU optional)
Power LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.2 Gen 1 x 2
RJ-45 Console x 1
LCM display with Keypad x 1

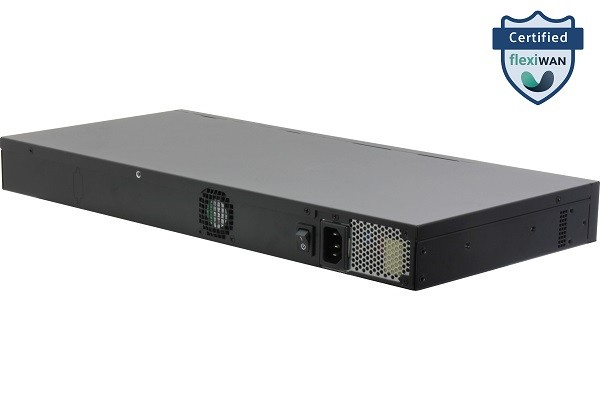

Software Programmable Button x 1Rear Panel AC Power Input x 1
Power Switch x 1
Description
A purpose-built I/O hosts a wealth of features to make the FWS-7541 the optimal low-power, high-performance network management solution. Complementing this is the system’s impressive expandability in such a compact form factor, which offers wireless module support for multiple network connection sources, providing stable, reliable uCPE and SD-WAN solutions. The FWS-7541 has now also obtained the distinction of flexiWAN certification.
