AAEON FWS-2370 Network Appliance
-
NG # 003630-HW-AAEON-O30
Manufactured by:
FWS-2370 Network Appliance with Intel Atom® Processor C Series/Intel Atom® Processor P Series
Specification
SYSTEM FORM FACTOR Desktop Network Appliance PROCESSOR Intel Atom® Processor C Series/Intel Atom® Processor P Series
Default: Intel Atom® Processor C5315CHIPSET SoC SYSTEM MEMORY DDR4 SODIMM socket x 2, up to ECC/Non-ECC 64GB
(Default: n/a)NETWORK ETHERNET Intel® Ethernet Controller I226-V 2.5GbE x 4
Marvell® Alaska® 88E1543 GbE x 4
10G SFP+ x 4BYPASS 2 Pair STORAGE HDD SATA 6Gb/s x 2 (co-lay M.2 2242 M-Key x 1) CF/CFAST/MSATA Support up to 128GB
(Default eMMC 32GB)INTERNAL/ EXPANSION INTERFACE PCIE SLOT — MINI-PCIE SLOT M.2 2230 E-Key x 1 (PCIe) for Wi-Fi
co-lay half-size Mini Card Slot x 1 (PCIe)
M.2 3052 B-Key x 1 (USB 2.0) for 5G/LTE
co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (PCIe + USB 2.0)
M.2 3052 B-Key x 1 (USB 3.0 + USB 2.0) for 5G/LTE
co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (USB 3.0 + USB 2.0)KB MOUSE — USB USB 3.0 x 2 (shared with PCIe Slot for PoE, default USB 2.0 x 2) MISCELLANEOUS RTC Internal RTC WATCHDOG TIMER 1~255 steps by software programmable SOFTWARE BUTTON GPIO Programmable push button x 1 TPM (Optional) GPIO Reserve Internal Pin Header 8-bit Digital I/O Interface (4-in/4-out) FAN Smart Fan x 1 (Default)
Internal Smart Fan Pin Header x 1 (Reserve)MTBF (HOURS) TBD COLOR Black PHYSICAL & ENVIRONMENTAL SPEC POWER Consumption Dual in 12V 60W Adapter (w/o POE)
Dual in 12V 90W Adapter (w/ POE)OPERATING TEMPERATURE 32°F ~ 104°F (0°C ~ 40°C ) STORAGE TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C) OPERATING HUMIDITY 10%~80% relative humidity, non-condensing STORAGE HUMIDITY 10%~80% @40°C; non-condensing VIBRATION 0.5 Grms/ 5 ~ 500Hz / operation (mSATA)
1.5 Grms/ 5 ~ 500Hz / non-operationSHOCK 10 G peak acceleration (11 m sec. duration), operation

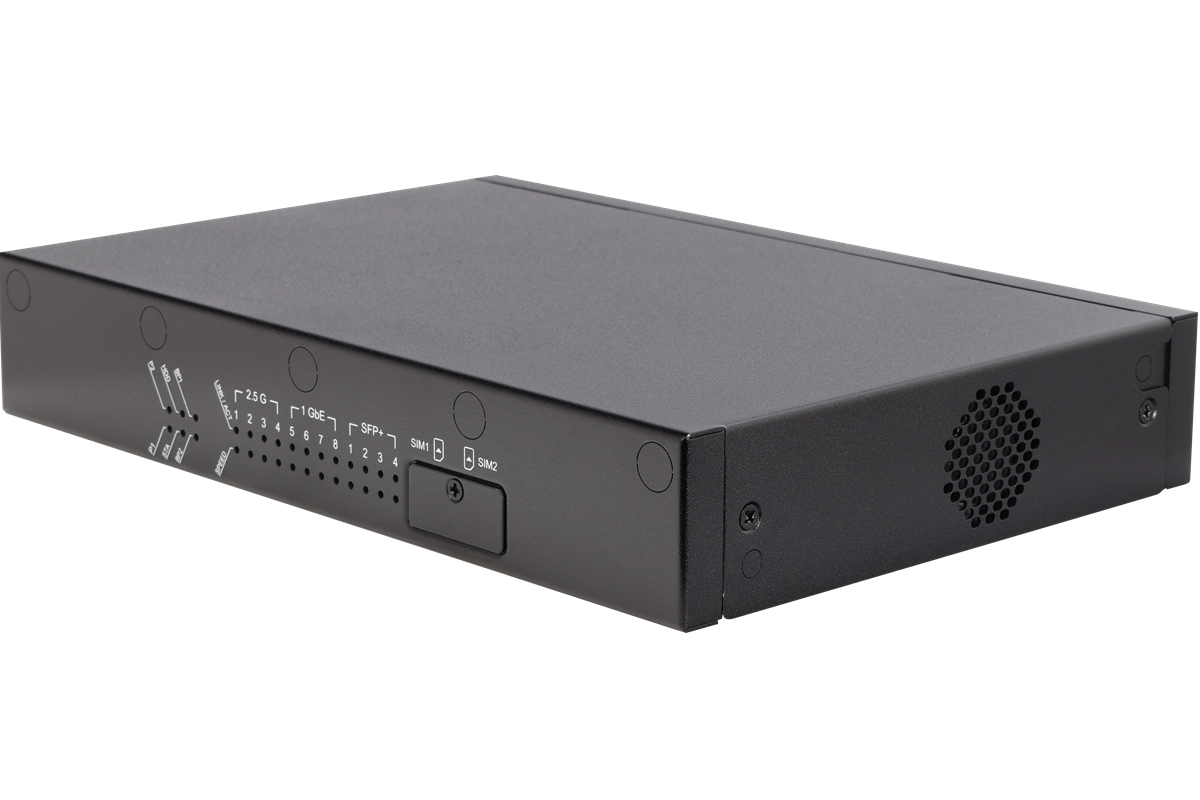

20 G peak acceleration (11 m sec. duration), non-operationDIMENSION (W X D X H) 10.2" x 7" x 1.7" (260mm x 178mm x 44mm) I/O FRONT PANEL Optional type c console x 1
Micro SIM socket x 2
Main board LAN LED x 24
Optional module LAN LED via cable x 4
Bypass LED x 2
Storage LED x 1
Status LED x 1
Power LED x 2

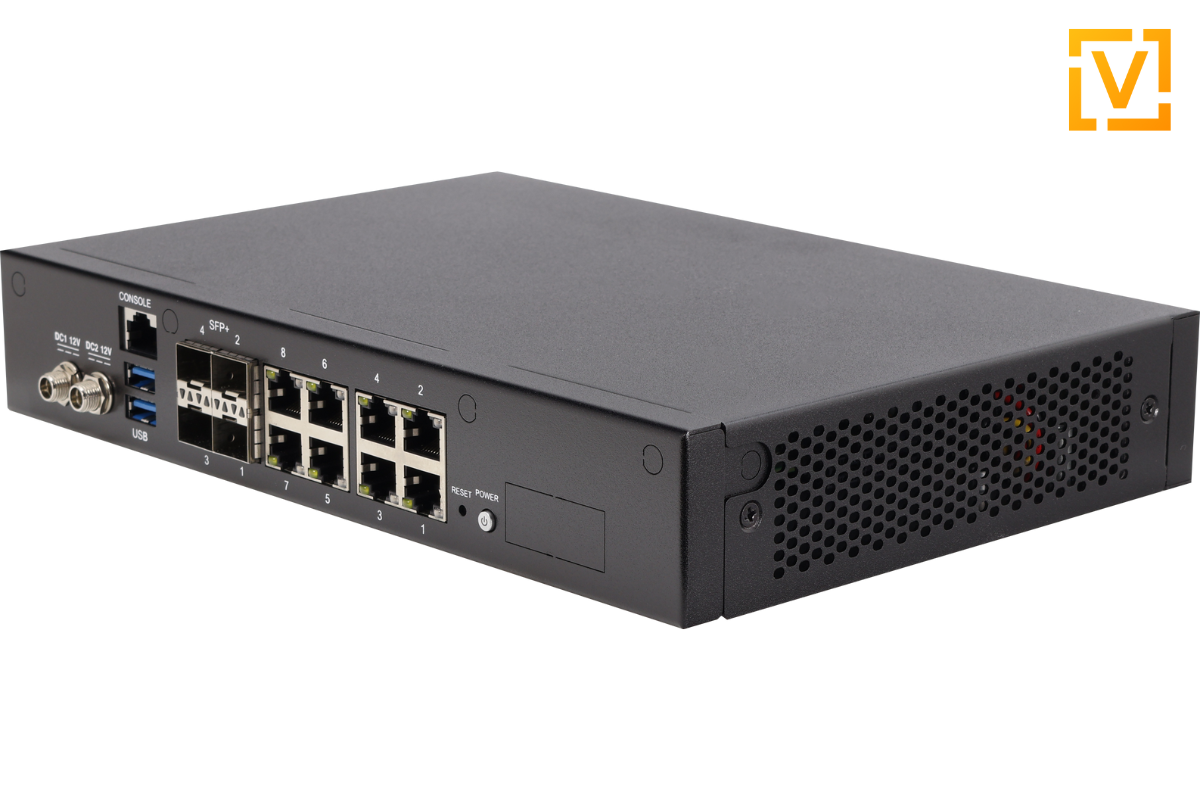

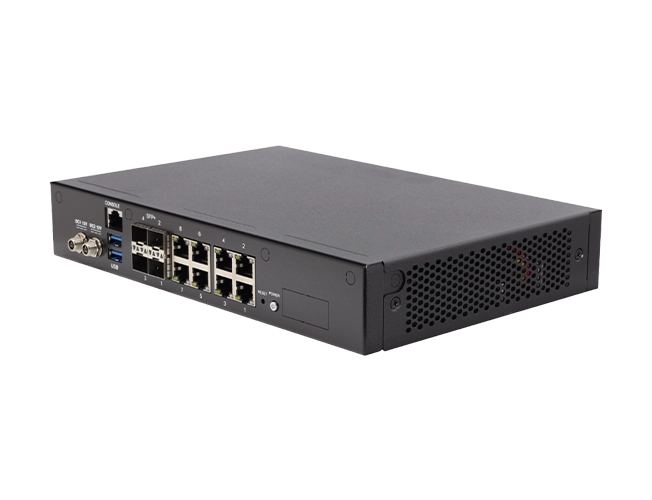

Antenna hole x 3REAR PANEL DC Power Input Connector Lockable x 2
RJ45 console x 1
USB 3.0 Port x 2
Power LED x 2
10G SFP+ x 4
1G Marvell RJ45 Port x 4
2.5G RJ45 Port x 4
SW reset button x 1
Power button x 1
Antenna hole x 4
Optional 2.5G LAN module x 2 (optional with POE af/at)
Description
The FWS-2370 is the most expansive, versatile network platform AAEON has ever developed, offering unparalleled wired and wireless networking options. Powered by Intel Atom® C5000 processors and boasting up to 14 LAN ports ranging from 1GbE to 10GbE speeds, the FWS-2370 is precisely designed to elevate what SD-WAN and uCPE applications can achieve. Robust connectivity and high-powered processing are joined by a range of integrated security features, keeping your business safe in today’s ever-evolving landscape.
