AAEON FWS-2365 Desktop Network Appliance
-
NG # 003634-HW-AAEON-O34
Manufactured by:
FWS-2365 FlexiWan certified | Desktop Network Appliance with Intel® Atom® Processor C3000 series | AAEON SD-WAN FWS-2365
Specification
SYSTEM FORM FACTOR Desktop Network Appliance PROCESSOR Intel Atom® Processor C3558 CHIPSET SoC SYSTEM MEMORY DDR4 SODIMM ECC x 2, up to 64GB NETWORK ETHERNET Intel® Ethernet Controller I210, Gigabit Ethernet x 6 (2 ports co-lay SFP)
Intel® Ethernet Controller I210, SFP x 1 (4 core processors only support 2 SFP ports)BYPASS Supports 1 pairs on LAN 3-4 STORAGE HDD SATA III port x 2, 2.5" HDD/SSD up to 2 CF/CFAST/MSATA On board 16GB eMMC, up to 128GB
optional mSATA slot x 1 (co-lay with M.2 slot)INTERNAL/ EXPANSION INTERFACE PCIE SLOT — MINI-PCIE SLOT Mini-card slot x 1 (Half-size, PCIe)
Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot
M.2 B key 3052 x 1 (USB3.0) with SIM slotKB MOUSE Reserved pin-header USB USB 3.0 x 2 (1 Port only support USB2.0 signal) MISCELLANEOUS RTC Internal RTC WATCHDOG TIMER 1~255 steps by software programmable SOFTWARE BUTTON GPIO programmable push button x 1 TPM TPM v2.0 9665 GPIO 4 bits input/ 4 bits output FAN System Fan x 1 MTBF (HOURS) TBD COLOR Black PHYSICAL & ENVIRONMENTAL SPEC POWER REQUIREMENT 12V DC Power in connector
4 Cores: 40W Power Adapter
8 Cores and above: 60W Power AdapterOPERATING TEMPERATURE 32°F ~ 104°F (0°C ~ 40°C ) STORAGE TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C) OPERATING HUMIDITY 10%~80% relative humidity, non-condensing STORAGE HUMIDITY 10%~80% @40°C; non-condensing VIBRATION 0.5 g rms/ 5 ~ 500Hz / operation (2.5" HDD)
1.5 g rms/ 5 ~ 500Hz / non operationSHOCK 10 G peak acceleration (11 m sec. duration), operation

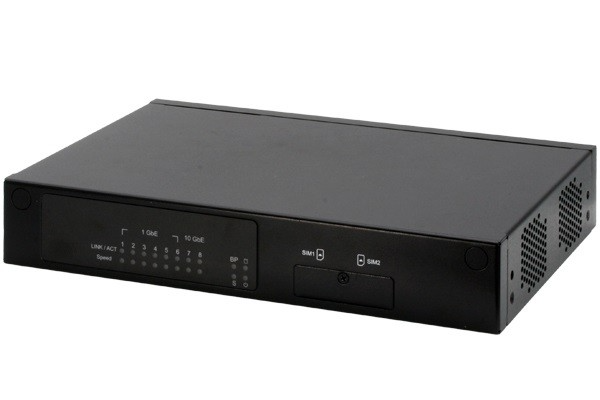

20 G peak acceleration (11 m sec. duration), non operationDIMENSION (W X D X H) 260mm x 178mm x 44mm (W x D x H) I/O FRONT PANEL Power LED x 1
Status LED x 1
Storage Active LED x 1
Bypass LED x 1
Ethernet LED x 20
Antenna Hole x 2

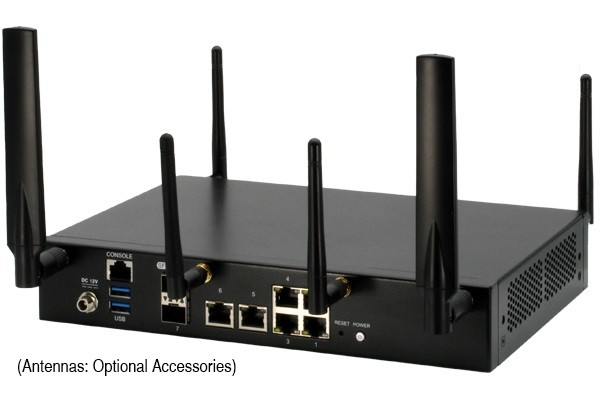

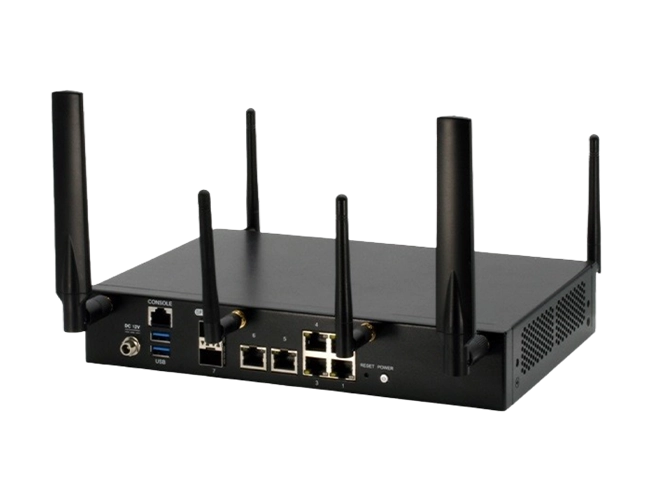

Accessible SIM slot x 2REAR PANEL USB 3.0 Port x 2
RJ-45 Port x 6
SFP+ Port x 2
RJ-45 Console x 1
12V DC Power Input x 1
Software Reset Button x 1
Power Button x 1
Antenna Hole x 4
Description
The FWS-2365 desktop network appliance is a white box solution designed with a range of powerful features for applications including uCPE and SD-WAN. The system supports 5G connectivity and up to four SFP+ Fiber 10 Gbps ports and a range of powerful tools and function to accelerate deployment of SD-security, QoS and other SDN/NFV applications.
