AAEON FWS-2291 Network Appliance with Intel® Alder lake N/Amston lake SoC Processor
-
NG # 003629-HW-AAEON-O29
Manufactured by:
Specification
SYSTEM Form Factor Desktop Network Appliance processor Intel® Alder lake N / Amston lake SoC Processor Chipset SoC System Memory DDR5 SO-DIMM up to 16GB NETWORK Ethernet Intel® i226 V, 2.5 Gigabit Ethernet x 4
Intel® i210IS, SFP x 2 (co-lay with i210AT Copper x2) by PCIe Bridge ASM1806Bypass 2 Pairs DISPLAY Connector HDMI x 1 (Only support on Alder lake N) STORAGE HDD 2.5” HDD Bay x 2, 1 SATA co-lay with M.2 2242 CF/CFast/mSATA Onboard 32G eMMC, up to 128G INTERNAL/ EXPANSION INTERFACE Mini-PCIe Slot M.2 B Key x 1 (3042+3052+ PCIe [x1]) by ASM1086 for4G/5G, Co-lay Mini-Card
full size slot) with Push-pin SIM for 4G LTE/Wifi (Without ASM 1806, only USB
3.2 Gen 1+2.0 signal for 4G LTE/5G.)
M.2 E Key x 1 (2230 ,Co–lay Mini-Card Half-size slot for WiFi)USB 2 x USB 3.2 Gen 1 type A port MISCELLANEOUS RTC Internal RTC Watchdog Timer 1~255 step by software programmable Software Button GPIO Programmable push button x 1 TPM SPI TPM v2.0 (optional) nuvoton co-lay Infineon SLB 9672VU2.0 FW15.21 GPIO (4 bits input, 4 bits output optional) Fan Fan x 1 MTBF (hours) TBD Color Black PHYSICAL & ENVIRONMENTAL SPEC Power Requirement Dual in 12V 40W Adapter
Dual in 12V 60W Adapter for Amston Lake X7809C SKUOperating Temperature 32 ~ 122°F (0 ~ 40°C) Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C) Operating Humidity 10%~90% relative humidity, non-condensing Storage Humidity 10 ~ 80% @ 40C, non-condensing Vibration 0.5G / 5 ~ 500Hz / operation
1.5G / 5 ~ 500Hz / non-operationSHOCK 0G peak acceleration (11 m sec. duration), operation

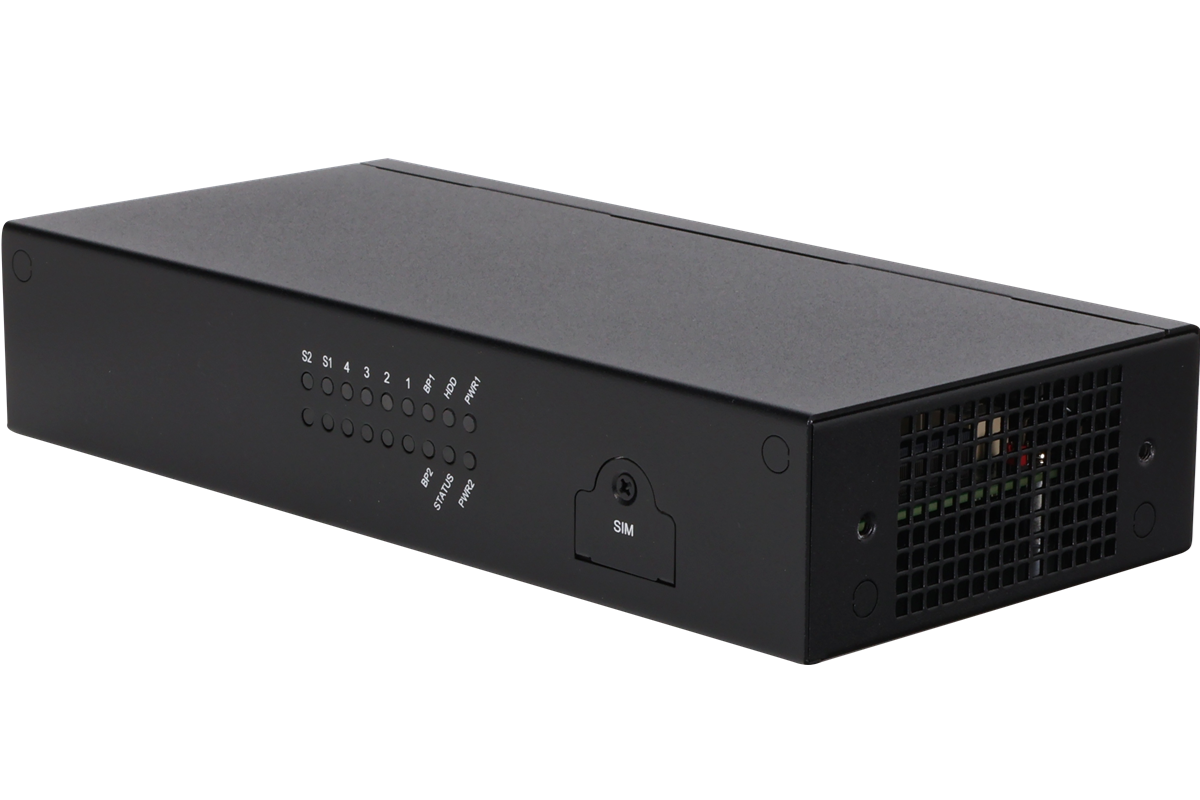

20G peak acceleration (11 m sec. duration), non-operationDimension (W x D x H) Standard: 220mm x 105mm x 44mm(W x D x H) I/O Front Panel Power LED x 2
Status LED x 1
Bypass LED x 2
Storage Active LED x 1
Ethernet LED x 12
Antenna Hole x 4

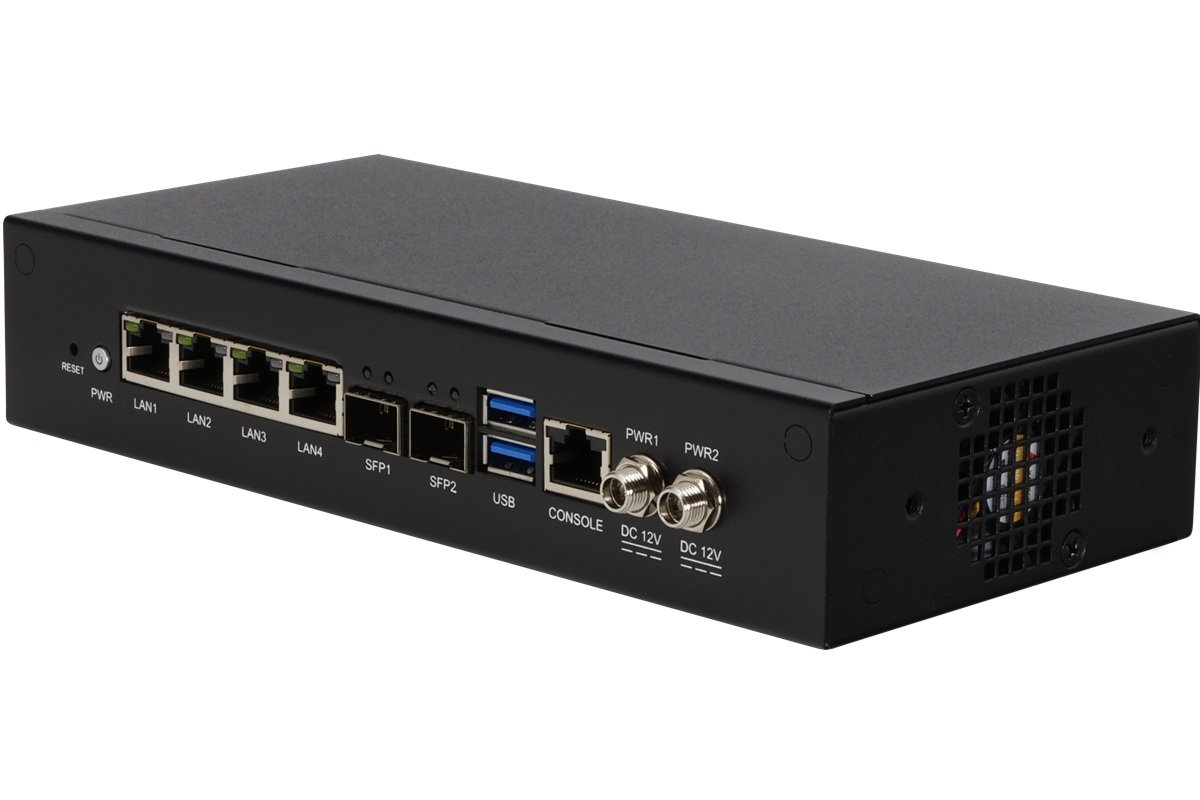

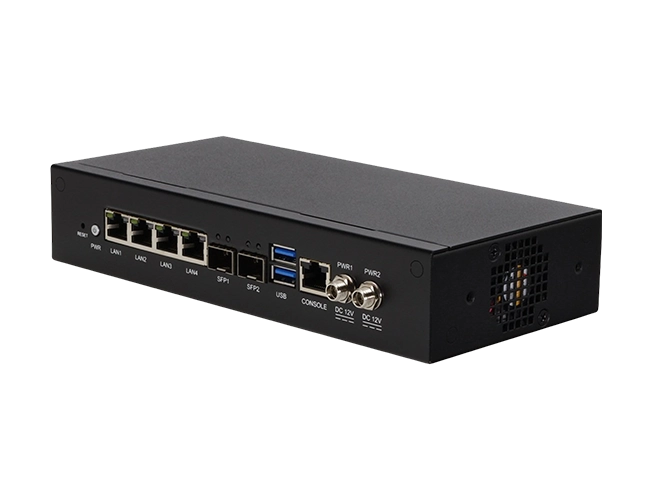

Accessible SIM slot x 2Rear Panel DC Power Input Connector Lockable x 2
Power Button x 1
USB 3.2 Gen 2 Port x 2
RJ-45 Port x 4
Fiber RJ45 x 2
Antenna Hole x 4
Description
Network Appliance with Intel® Alder lake N / Amston lake SoC Processor
