AAEON de next-V2K8 86 x 55mm Single Board
-
NG # 003624-HW-AAEON-O24
Manufactured by:

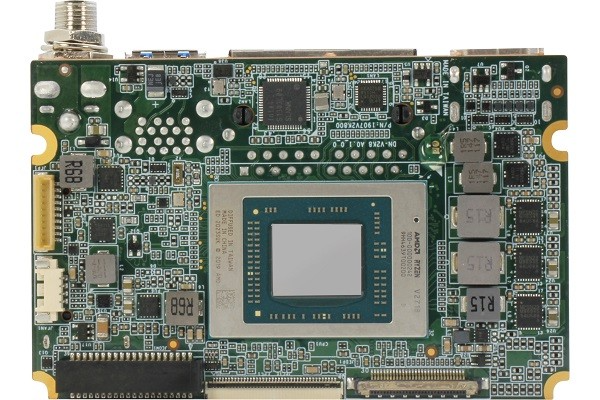

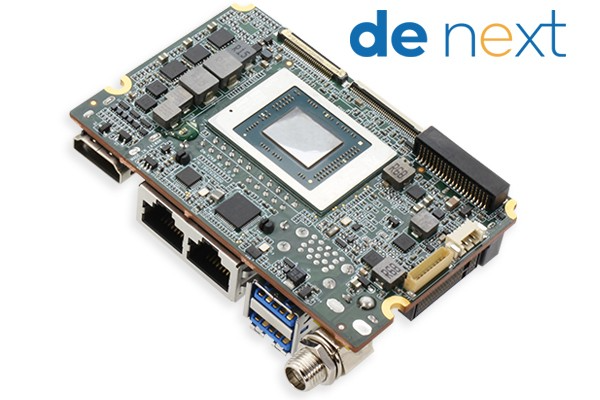

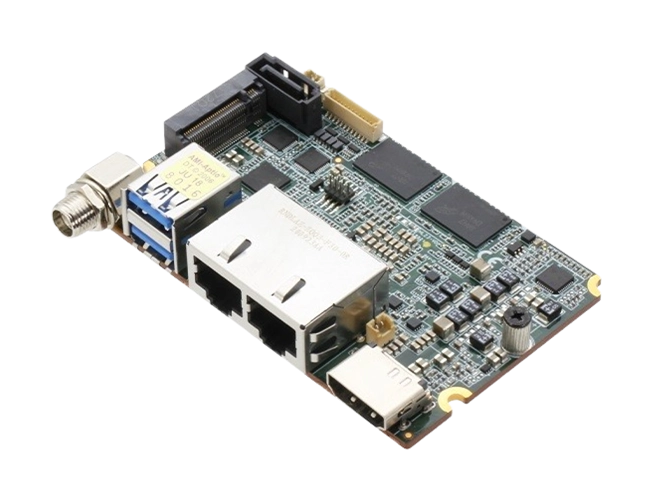

AAEON de next-V2K8 86 x 55mm Single Board with AMD Ryzen™ Embedded V2000 Series Processor
Specification
SYSTEM FORM FACTOR 86mm x 55mm, Single Board Computer CPU AMD Ryzen™ Embedded V2516 with Radeon™ Graphics (6C/16T, 2.1GHz, 25W) CHIPSET Integrated with AMD SoC MEMORY TYPE Onboard LPDDR4x 3200, default with 16GB BIOS UEFI WAKE ON LAN Yes WATCHDOG TIMER 255 Levels SECURITY fTPM RTC Battery Lithium Battery 3V/240mAh DIMENSION (L X W) 3.38" x 2.17" (86mm x 55mm) OS SUPPORT Windows 10 (64bit)
Ubuntu 22.04 (kernel 5.15)POWER POWER REQUIREMENT +12V POWER SUPPLY TYPE AT/ATX CONNECTOR DC Jack Connector POWER CONSUMPTION V2718 , LPDDR4 16GB, 3.07A @12V, 36.84W (TYPICAL)
V2718 , LPDDR4 16GB, 3.92A @12V, 47.04W (MAX)DISPLAY CONTROLLER AMD V-Series V2000 with Radeon™ Graphics LVDS/eDP eDP 1.4 x 1 , up to 3840 x 2160 DISPLAY INTERFACE HDMI 1.4 x 1 , up to 3840 x 2160@30Hz Multiple Display 2 Simultaneous Displays EXTERNAL I/O ETHERNET Realtek RTL8111, 1GbE RJ-45 x 1
Intel® i226, 2.5GbE RJ-45 x 1USB USB 3.2 Gen 2 x 2 VIDEO HDMI 1.4b x 1 INTERNAL I/O USB USB 2.0 x 4
Note : USB2.0 x 2 shared with adapter card PER-T642 / PER-T643. (de next-V2K8-A11 only)SERIAL PORT COM1 , COM2 (RS232/422/485, support 5V/RI) VIDEO eDP 1.4 x 1 SATA SATA 6.0 Gbps x 1
with +5V SATA Power Connector x 1DIO/GPIO GPIO 8 bits SMBus/I2C Optional FAN 4 Pin Smart Fan Front Panel Power Button, Reset Button, Power LED, SATA LED, Buzzer EXPANSION M.2 M.2 2280 M-key x 1 (PCIe[x2] x 1 or PCIe[x1] x 2, selected by BIOS) OTHERS FPC Connector x 1 (PCIe 3.0 [x4] x 1) ENVIRONMENT & CERTIFICATION OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C) STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C) OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing MTBF (HOURS) 609,263 CERTIFICATION CE/FCC Class A
Description
Powered by the AMD Ryzen™ Embedded V2718 and V2516 processors, the de next-V2K8 boasts an astonishing 8 cores and 16 threads alongside Zen 2 x86 core architecture and 7nm process technology in an unprecedentedly small board. Taking advantage of this strong base, the de next-V2K8 has the high-performance computing performance for edge AI applications along with the mobility for deployment in robotics solutions.
