AAEON BOXER-6843-ADS
-
NG # 003619-HW-AAEON-O19
Manufactured by:

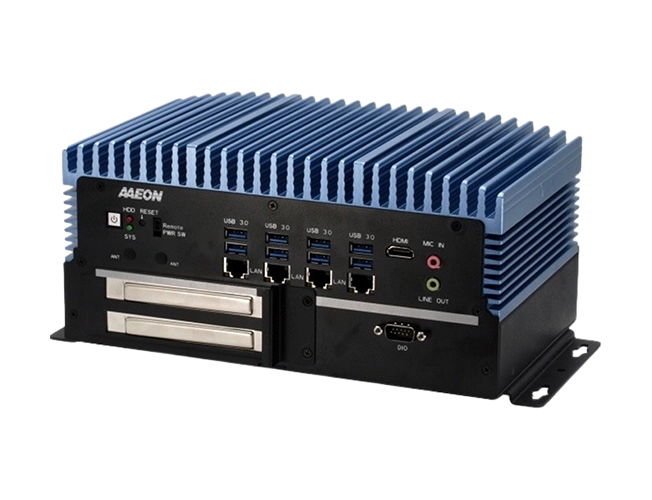

The BOXER-6839-CFL combines the power of 8th/9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake) with expandability and a broad I/O layout, allowing it to power industrial applications and easily integrate with existing deployments.
Specification
SYSTEM CPU Intel® Xeon® E-2124G
Intel® i9-9900T
Intel® i7-9700TE
Intel® i7-8700T
Intel® i5-8500T
Intel® i3-8100T
Pentium® G5400T
Celeron® G4900TChipset C246 System Memory DDR4-2666 SO-DIMM slot x 2

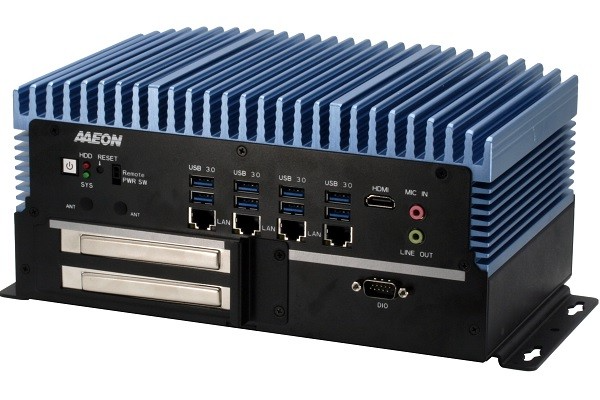

Up to 64GB, ECC or Non-ECC SupportDisplay Interface HDMI x 2 Storage Device 2.5” SATA HDD/SSD Bay x 2 Ethernet RJ-45 x 4 for GbE LAN (i211-AT x 3, i219-LM x 1) I/O HDMI x 2
RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1)
USB 3.2 Gen 1 x 8

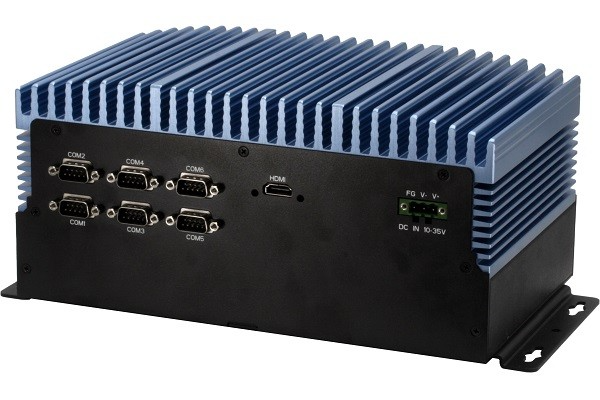

DB-9 x 6 for RS-232/422/485
Audio x 1 (MIC-in, Line-out)
DB-15 for DIO 8 bit x 1
3 pin 10~35V Power Input x 1
Power Button x 1
Remote Power switch x 1
Reset Button x 1Expansion Full-size Mini card x 1 (PCIe)
Full-size Mini card x 1 ((PCIe/mSATA switch by BIOS, Default: mSATA)
SIM slot x 1
PCIE slot :
Riser card type 1: PCIe[x4] slot x 1 & PCIe[x1] x 1 (A1)
Riser card type 2: PCIe[x4] slot x 1 & PCI x 1 (A2)
Riser card type 3: PCI x 2 (A3)
Max. size of expansion card 150 x 105 x 40 mmIndicator HDD LED x 1
System LED x 1OS support Windows® 10 64-bit, Linux Ubuntu 20.04 POWER SUPPLY Power Requirement 3-pin Phoenix DC Input 10~35V MECHANICAL Mounting Wallmount Dimensions (W x H x D) 264mm x 156mm x 125mm Gross Weight 13.2 lb (6.0 kg) Net Weight
9.9 lb (4.5 kg)ENVIRONMENTAL Operating Temperature -4°F ~131°F (-20°C ~ 55°C) with 0.5 m/s airflow (with TDP ≦ 35W CPU)
-4°F~113°F (-20°C ~45°C) with 0.5 m/s airflow (with TDP > 35W CPU)Storage Temperature -49°F ~ 176°F (-45°C ~ 80°C) Storage Humidity 5~95% @ 40°C, non-condensing Anti-Vibration 5 Grms/ 5 ~ 500Hz/ operation –SSD Anti-Shock SSD: 50G @ wallmount, Half-sine, 11ms Certification CE/FCC class A
Description
The BOXER-6839-CFL supports 8th/9th Generation Intel® Core™ i3/i5/i7/i9 and Xeon® E processors (up to 71W TDP), delivering server grade performance. Combined with up to 64GB of memory, the BOXER-6839-CFL brings the processing power and speed needed to power a range of industrial and AI applications.
