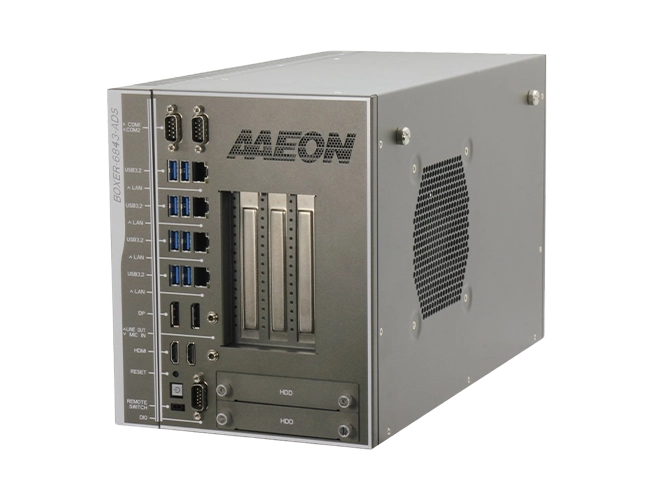

AAEON BOXER-6842M Fanless Embedded Controller

  • NG # 003620-HW-AAEON-O20

Manufactured by:

This seller generally responds in under 48 hours

BOXER-6842M Fanless Embedded Controller with 8th/9th Generation Intel® Processor

Add to favorites | Compare this product

Specification

System
CPU--
CPU SupportIntel® Xeon® E-2124G;
Intel® Core™ i9-9900T;
Intel® Core™ i7-8700T;
Intel® Core™ i5-9500TE
Intel® Core™ i5-8500T;
Intel® Core™ i3-8100T;
Intel® Pentium® G5400T;
Intel® Celeron® G4900T
Note: Support max. TPD 71W Processor
ChipsetC246, No H310 downward support
System MemoryDDR4 SO-DIMM socket x4 (double deck)
Support max. 2666MHz up to 128GB
Support un-buffered and ECC / non-ECC type SODIMM
Display InterfaceHDMI x 2 Support Dual Independent Display, 4K Ultra HD displays
Storage Device2.5" SATA Drive Bay x2 (4 SATA Port w/ RAID Function)
mSATA x 1 (optional)
M.2 2280 NVMe SSD slot x 1
EthernetRJ-45 x 3 for GbE (Intel i211AT x 2, i219LM x 1)

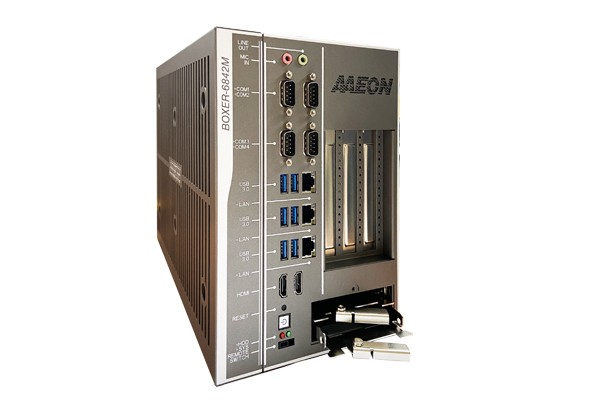

I/OHDMI x 2
Audio (Mic-in, Line-out)
USB 3.2 Gen1 x 6
DB-9 x4 for RS-232/422/485 with automatic flow control
3 pin DC Power input x 1 (+, - , GND)
Power ON/OFF switch x 1
2 pin Remote power on/off connector
Reset switch
ExpansionA2/A3/A4/A5
Full-size Minicard x 1 (PCIE + USB with 1 SIM Slot)
Half-size Minicard x 1 (PCIE + USB, optional for mSATA)
M.2 M key (2280) x 1 (PCIEx4)
- Max. Power Consumption of GPU card 250W
- Max. Size of GPU card 280mm x150mm x 40mm
A2
PCIE [x4] x 1 + PCIE [x16] x 1
A3
PCIE [x4] x1 + PCIE [x8] (in x16 slot) x 2
A4
PCIE [x4] x1 + PCIE [x8] (in x16 slot) x2
Support dual Graphics Cards with two power inputs
A5
Built in Nvidia A2 x1
PCIE [x4] x 1 + PCIE [x8] x 1 (in x16 slot)
Note: A3 is fanless system. A2 & A4 & A5 is fan system with PWM function
IndicatorSystem Power LED x 1 (Green)
Storage Active LED x 1 (Red)
OS SupportWindows® 10 Enterprise 64 bit
Ubuntu 18.04.4
Power Supply
Power RequirementA2/A3/A4
DC In 12~24V with 3-pin terminal block
No Graphics Card: CPU 35W->120W Adapter x 1, CPU 71W->240W Adapter x 1
With 250W Graphics Card x1: 480W Adapter x 1
A4
DC In 12~24V with 3-pin terminal block
With 250W Graphics Card x2: 330W Adapter x 1 + 480W Adapter x 1
A5
DC In 12~24V with 3-pin terminal block
With A2 x 1: 240W Power Adapter x 1
With A2 x 2: 330W Power Adapter x 1
Mechanical
MountingWallmount

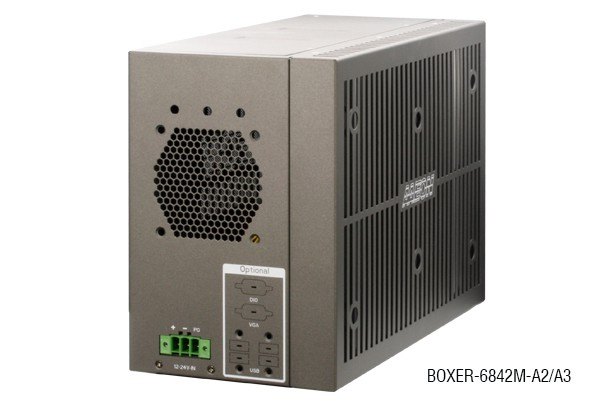

DimensionsA2/A3: 6.17” x 8.92” x 12.8” (156.7mm x 226.5mm x 325mm)
A4: 7.77” x 8.92” x 12.8” (197.3mm x 226.5mm x 325mm)
Gross WeightA2/A3: 18.52 Ib (8.4 Kg);
A4: 20.72 Ib (9.4 Kg);
A5: 20.5 lb (9.3 Kg)
Net WeightA2/A3: 15.65 Ib (7.1 Kg);
A4: 17.86 Ib (8.1 Kg);
A5: 17.64 (8 Kg)
Environmental
Operating TemperatureWithout Graphics Cards: -4°F ~ 149°F (-20°C ~ 65°C) with 0.5m/s airflow
With 250W Graphics Card: 32°F ~ 113°F (0°C ~ 45°C) with 0.5m/s airflow
A5: 32°F ~ 113°F (0°C ~ 40°C) with 0.5m/s airflow
Storage Temperature-49°F ~ 176°F (-45°C ~ 80°C)
Storage Humidity5 ~ 95% @ 40°C, non-condensing
Anti-VibrationHDD: Random, 1Grm, 5~500Hz
Anti-Shock-
CertificationCE / FCC class A

Description

The BOXER-6842M features the 8th and 9th Generation Intel® Core™ i9/i7/i5/i3 and Xeon® E processors (formerly Coffee Lake/Coffee Lake Refresh), offering top end computing performance. Paired with up to 128 GB of SODIMM memory, the system is designed to deliver the best performance possible to handle processing intensive machine vision and AI Edge server applications.
