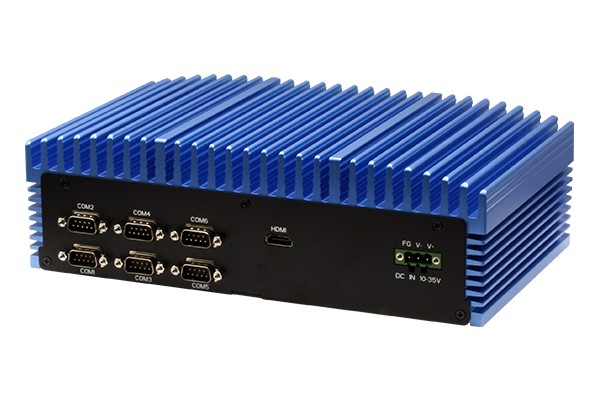

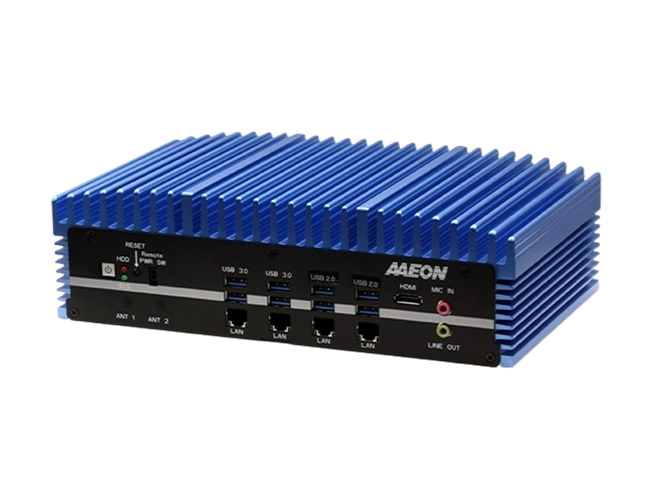

AAEON BOXER-6641 Fanless Embedded Box PC
-
NG # 003609-HW-AAEON-O09
Manufactured by:
The BOXER-6641 is designed to provide users with unmatched flexibility and performance. Available with two chipsets, the H310 (BOXER-6641-A1) and C246 (BOXER-6641-A2), the system offers a range of processors from the 8th Generation Intel® Core™ and Xeon® processor family (formerly Coffee Lake), from Celeron® G4900T and Pentium® G5400T up to Xeon® E-2124G (up to 71W). Combined with up to 32GB of ECC or non-ECC DDR4 2666MHz RAM and support for two hard drives, the BOXER-6641 is currently the most powerful fanless industrial system available on the market.
Specification
SYSTEM CPU SUPPORT (default: n/a) Intel® i9-9900T
Intel® i7-9700TE
Intel® i7-8700T
Intel® i5-8500T
Intel® i3-8100T
Pentium® G5400T
Celeron® G4900TCHIPSET Intel® H310 SYSTEM MEMORY DDR4-2666 SO-DIMM slot x 2
Up to 64GB, ECC or Non-ECC SupportDISPLAY INTERFACE HDMI x 2 STORAGE DEVICE 2.5" SATA HDD/SSD Bay x 1 ETHERNET Intel® i211 x 3, i219 x 1 I/O HDMI x 2
RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1)
USB 3.2 Gen 1 x 4, USB2.0 x 4
DB-9 x 6 for RS-232/422/485
Audio x 1 (MIC-in, Line-out)
3 pin 10~35V Power Input x 1
Power Button x 1
Remote Power switch x 1
Reset Button x 1
HDD LED x 1
SYS LED x 1EXPANSION Full-size Mini PCIe x 1
Full-size Mini Card x 1 (PCIe/mSATA switch by BIOS, Default: mSATA)
SIM slot x 1INDICATOR HDD LED x 1
SYS LED x 1OS SUPPORT Windows® 10 64-bit
Linux Ubuntu 20.04POWER SUPPLY POWER REQUIREMENT 3-pin DC Input 10~35V MECHANICAL MOUNTING Wallmount DIMENSIONS (W X H X D) 10.4" x 3.19" x 6.15" (264.2mm x 80.92mm x 156.2mm) GROSS WEIGHT 10.4 lb (4.7 kg) NET WEIGHT 8.2 lb (3.7 kg) ENVIRONMENTAL OPERATING TEMPERATURE -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with TDP ≦ 35W CPU
-4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with TDP >35W CPUSTORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C) STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing ANTI-VIBRATION 2 Grms/ 5 ~ 500Hz/ operation – SSD/mSATA
1 Grms/ 5 ~ 500Hz/ operation – HDDCERTIFICATION CE/FCC class A
Description
The BOXER-6641 is built to easily integrate into any industrial application. I/O features include six COM ports and up to eight USB 3.2 Gen 1 ports (A2 model). The BOXER-6641 also comes with four Intel® Gigabit Ethernet ports, including one Intel® i219 chipset, with built-in support for Intel® vPRO and Active Management Technology (Intel® AMT) available on BOXER-6641-A2. The BOXER-6641 is expandable with two mPCIe slots, capable of supporting AI applications with solutions such as AAEON’s AI Core X with Intel® Movidius® Myriad™ X VPU.
