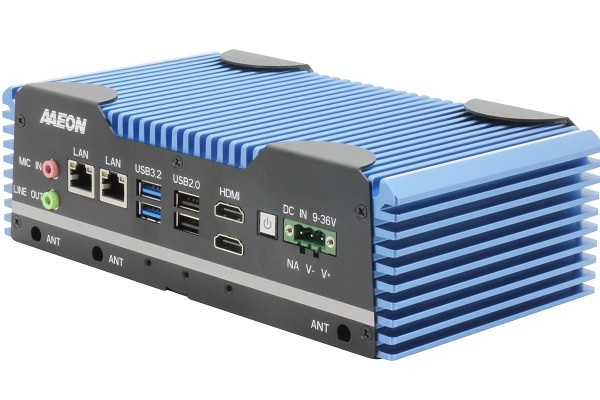

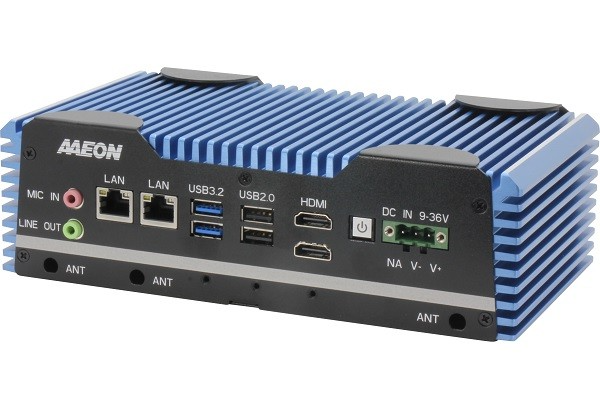

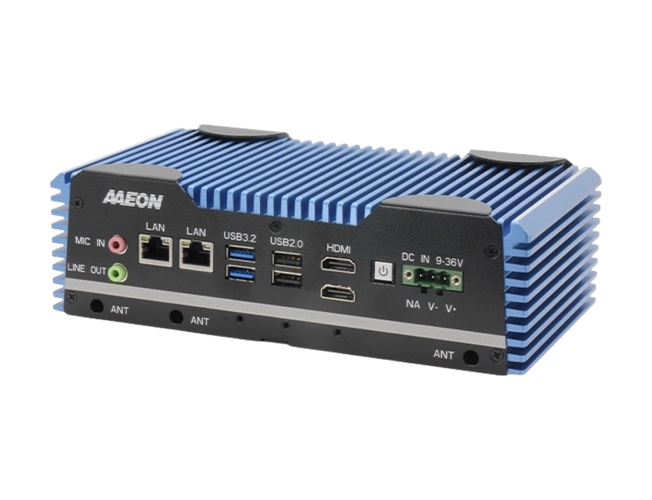

AAEON BOXER-6617-ADN & ASL Fanless Compact Embedded Computer
-
NG # 003603-HW-AAEON-O03
Manufactured by:
BOXER-6617-ADN & ASL Fanless Compact Embedded Computer with Intel® Core™ i3 Processor N/Intel Atom® Processor X/Intel® Processor N-series SoC
Specification
SYSTEM CPU Intel® Processor N50
Intel® Processor N97
Intel® Core™ i3-N305
Intel Atom® x7211E
Intel Atom® x7835RE
Intel Atom® x7433RE
Intel Atom® x7211REChipset Intel® SoC System Memory DDR5 4800MHz SODIMM x 1, up to 32GB Display Interface HDMI x 2 Storage Device M.2 2280 M-Key x 1 (PCIe [x2])
2.5" SATA HDD/SSD x 1Ethernet RJ-45 x 2 for 2.5GbE LAN (Intel® I226) I/O HDMI x 2
RJ-45 x 2 for 2.5GbE LAN (Intel® I226)
USB 3.2 Gen 2 x 2 (Type-A)
USB 2.0 x 4 (Type-A)

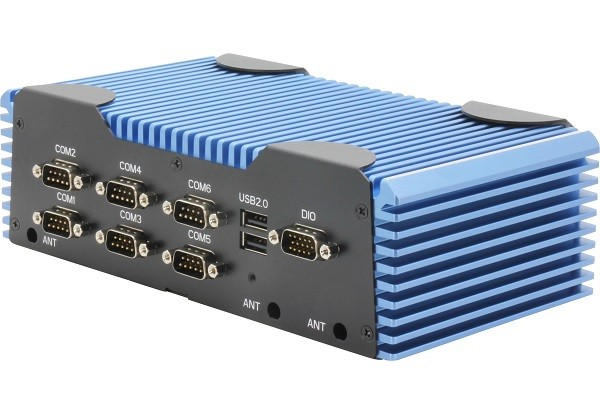

DB-9 x 6 for RS-232/422/485
Mic-in/Line-out
D-Sub connector for DIO 8 bit
3-Pin Terminal Block for DC In x 1
2-Pin Remote On/Off x 1
Reset Button x 1
Power Button with LED x 1Expansion M.2 2280 M-Key x 1 (PCIe [x2])
M.2 2230 E-Key x 1 (for Wi-Fi)
M.2 3052 B-Key x 1 (for 5G/LTE)
SIM Slot x 1Indicator Sys LED
Storage active LEDOS support Windows® 10 IoT Enterprise
Windows® 11 IoT Enterprise
Windows® 11 PRO
Linux Ubuntu 22.04POWER SUPPLY Power Requirement DC-in 9-36V x 1 for 3-Pin Terminal Block MECHANICAL Mounting Wall Mount (default), DIN Rail (mounting clip optional) Dimensions (W x H x D) 8.42" x 4.54" x 2.59" (214mm x 115.5mm x 65.8mm) without brackets Gross Weight 6.17 lb. (2.8Kg) Net Weight 4.4 lb. (2Kg) ENVIRONMENTAL Operating Temperature -4°F ~ 158°F (-20°C ~ 70°C), according to IEC68-2 with 0.5 m/s AirFlow (w/
Industrial wide Temp. SSD/RAM)Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C) Storage Humidity 5 ~ 95% @ 40°C, non-condensing Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation (with SSD) Anti-Shock 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) Certification CE/FCC Class A
Description
Automating industrial workloads in demanding environments require rugged hardware, future-proof connectivity, and real-time data processing capabilities. With the introduction of the BOXER-6617-ASL, AAEON offers a scalable, durable, and compact embedded system easily deployed as the engine of both new automated systems and existing setups.
