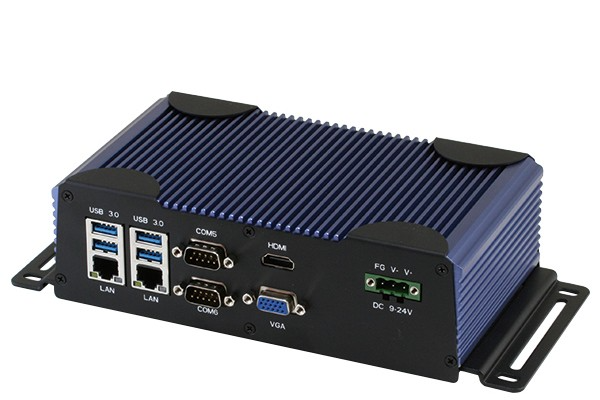

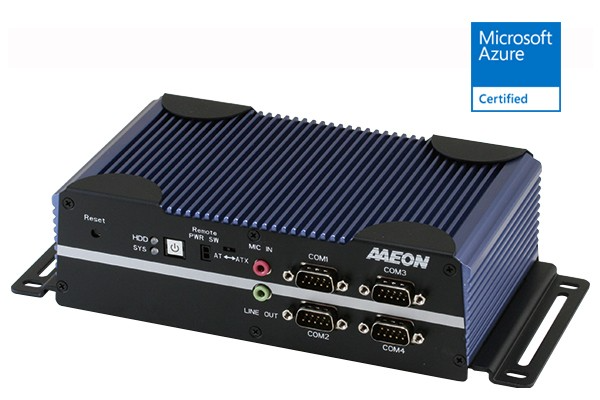

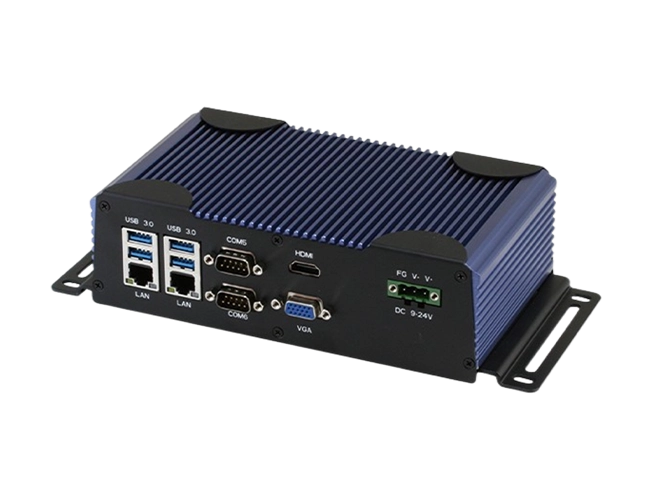

AAEON BOXER-6616 Fanless Embedded controller
-
NG # 003610-HW-AAEON-O10
Manufactured by:
BOXER-6616 Fanless Embedded controller with Intel® Celeron® Processor N3350/N4200
Specification
SYSTEM CPU Intel® Celeron® N3350, 2.4 GHz Chipset Intel® System on Chip System Memory DDR3L 1866, Single Channel SODIMM x 1, Non-ECC (Max.8GB, up to 1600MHz) Display Interface HDMI (max. 2048 x 1152), VGA (max. 2048 x 1152) Storage Device mSATA, HDD/SSD Ethernet Intel® I211, 10/100/1000Base-TX x 2 I/O RS-232/422/485 x 2
RS-232 x 4
USB 3.2 Gen 1 x 4
VGA x 1
HDMI x 1
LAN x 2
Remote On/Off x 1
Reset Button x 1
AT/ATX DIP Switch
Mic-In x 1
Line-Out x 1
Antenna holes x 1
Power button
Power inputExpansion Full-size Mini-Card x 1 (PCIE + USB, w/SIM slot)
Half-size Mini-Card x 1 (mSATA + USB)Indicator Power LED
HDD active LEDOS support Windows® 10 IoT Ent LTSC 2019 64 bit
Ubuntu 16.04 abovePOWER SUPPLY Power Requirement 9-24V with 3-pin terminal block MECHANICAL Mounting Wallmount
DIN Rail (Mounting kit is optional)Dimensions (W x H x D) 197mm(W) x 55mm(H) x 110mm(D) Gross Weight 6.6 lb (2.8 kg) Net Weight 4.4 lb (2 kg) ENVIRONMENTAL Operating Temperature -4°F ~ 158°F (-20°C ~ 70°C) with W.T. SSD/HDD/mSATA (according to IEC682-14 with 0.5 m/s AirFlow; with industrial devices) Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C) Storage Humidity 95% @ 40°C, non-condensing Anti-Vibration 3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD
1 Grms/ 5~ 500Hz/ operation – HDDCertification CE/FCC class A
Description
A major developer of Industry 4.0 computing solutions, AAEON launches the BOXER-6616, a low-power embedded PC perfect for applications in digital signage, building control and factory automation. With a wide voltage input of 9-24V, and powered by the newest ApolloLake CPU, the BOXER-6616 is perfect for entry-level rugged industrial uses as it is compact and affords minimal power consumption (with a capped limit of 17 watts) whilst effectively enhancing system performance at an affordable price.
