AAEON BOXER-6451-ADP Fanless Compact Embedded Computer
-
NG # 003614-HW-AAEON-O14
Manufactured by:

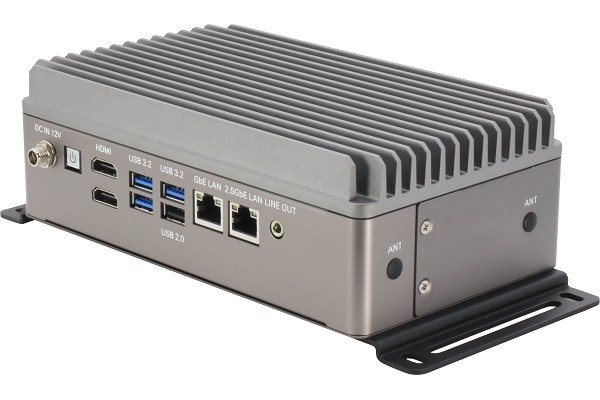

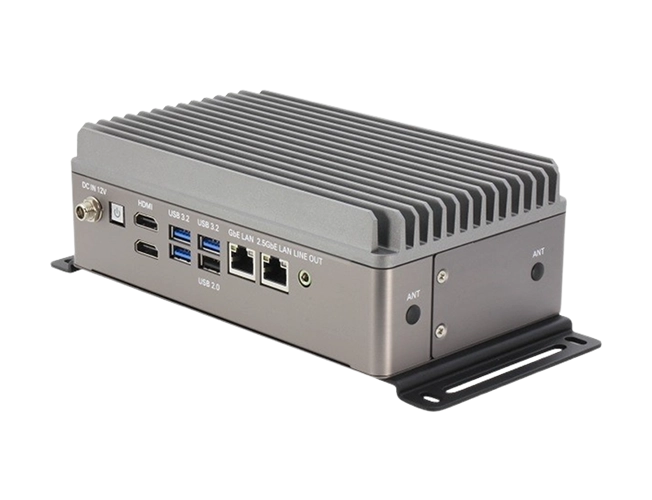

BOXER-6451-ADP Fanless Compact Embedded Computer with 12th Generation (Alder Lake-P U15) Intel® Core™ Processor
Specification
SYSTEM CPU Intel® Core™ i7-1265UE CHIPSET Intel® SoC SYSTEM MEMORY DDR4 SODIMM x1 (Maximum support: up to 32GB) DISPLAY INTERFACE HDMI 1.4b x 2 (Type-A) STORAGE DEVICE 2.5” SATA-III Drive Bay x1
M.2 2280 M Key x1 (PCIEx4)ETHERNET RJ-45 x 1 for 2.5GbE (Intel® I226-LM)
RJ-45 x 1 for GbE (Intel® I219-LM)I/O USB 3.2 Gen 2 x 3 (Type-A)
USB 2.0 x 1 (Type-A)

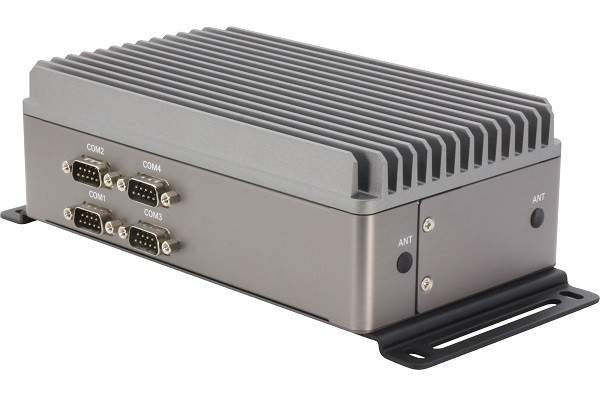

DB-9 x 4 for RS-232/422/485
HDMI 1.4b x 2 (Type-A)
Power Button x 1
DC Jack 12V Input
Antenna Opening x 6EXPANSION M.2 2230 E-Key x 1 (Wi-Fi/BT)
M.2 3052 B-Key w/ SIM x 1 (LTE/5G)
M.2 2280 M-Key x 1 (NVMe)INDICATOR Power Button with LED OS SUPPORT Windows® 10 IoT Ent LTSC
Windows® 11 PRO
Ubuntu 22.04POWER SUPPLY POWER REQUIREMENT DC-in 12V x 1 for Lockable DC Jack MECHANICAL MOUNTING Wallmount DIMENSIONS (W X H X D) 7.68" x 4.37" x 2.5" (195mm x 111mm x 63.5mm) w/o bracket GROSS WEIGHT 4.4 lb (2Kg) NET WEIGHT 3.3 lb (1.5Kg) ENVIRONMENTAL OPERATING TEMPERATURE -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow with wide temperature Memory/Storage STORAGE TEMPERATURE -40˚F ~ 176˚F (-40˚C ~ 80˚C) STORAGE HUMIDITY 5 ~ 95% @ 40˚C, non-condensing ANTI-VIBRATION SSD: Random, 3Grms, 5~500Hz ANTI-SHOCK SSD: 50G @ wallmount, Half-sine, 11ms CERTIFICATION CE/FCC class A
Description
The BOXER-6451-ADP is an exceptionally small, yet powerful fanless embedded PC powered by 12th Generation Intel® Core™/Celeron® processors (formerly Alder Lake-P U15). Channeling its high-level CPU capabilities through a fast, vast array of connectors for unmatched peripheral device function, the BOXER-6451-ADP is expertly designed for AMR, kiosk, and smart manufacturing applications. Designed with a new, innovative cooling structure, the BOXER-6451-ADP effortlessly accelerates heat transfer to facilitate heavier workloads. Additionally, the BOXER-6451-ADP gives users 5G, Wi-Fi, and NVMe functionality through the system’s unprecedented expandability, making it the perfect compact solution for bringing high performance to any project.
