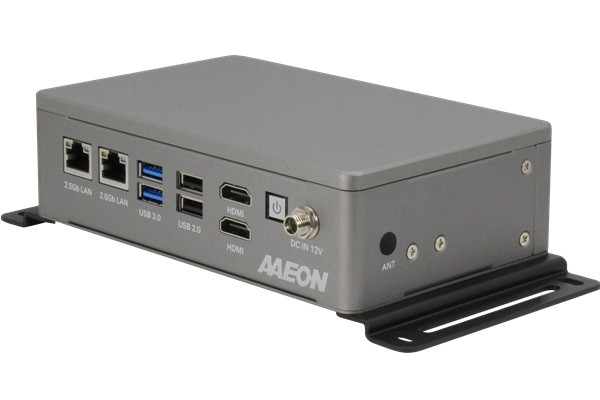

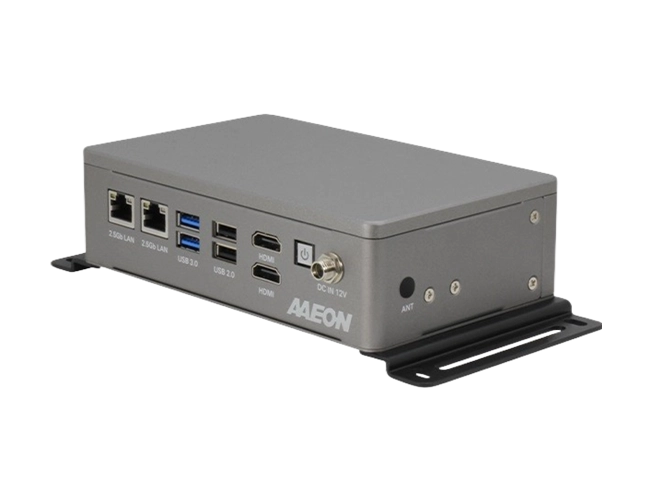

AAEON BOXER-6406U-ADN Fanless Compact Embedded Computer
-
NG # 003612-HW-AAEON-O12
Manufactured by:
BOXER-6406U-ADN Fanless Compact Embedded Computer with Intel Atom® Processor X-series/N-series
Specification
SYSTEM CPU Intel® Processor N200 CHIPSET Intel® SoC SYSTEM MEMORY (Default: No)
DDR5 4800Mhz SODIMM x 1, up to 32GBDISPLAY INTERFACE HDMI x 2 STORAGE DEVICE M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
2.5" SATA HDD/SSD x 1ETHERNET RJ-45 x 2 for 2.5GbE LAN (Intel® I226-LM) I/O HDMI x 2
RJ-45 x 2 for 2.5GbE LAN (Intel® Ethernet Controller I226-LM)
USB 3.2 Gen 2 (Type-A) x 2
USB 2.0 (Type-A) x 2

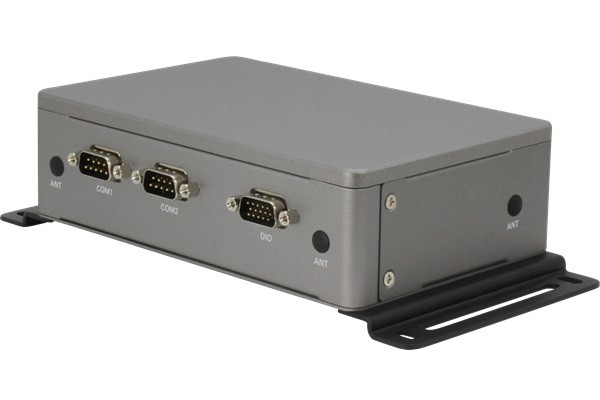

DB-9 x 2 for RS-232/422/485
DB-15 x 1 Male for 8-Channel Digital I/O
12V DC Jack Input
Power Button with LED x 1
Antenna OpeningEXPANSION M.2 2280 M-Key x 1 (PCIe [x2])
M.2 2230 E-Key x 1
Full-Size Mini Card x 1 (PCIe + USB)
SIM Slot x 1INDICATOR Power Button with LED OS SUPPORT Windows® 10 IoT Enterprise
Windows® 11 Pro
Ubuntu 22.04POWER SUPPLY POWER REQUIREMENT Lockable DC Jack x 1 for 12V DC-in MECHANICAL MOUNTING Wallmount DIMENSIONS (W X H X D) 6.46" x 4.11" x 1.85" (164mm x 104.5mm x 47mm) without bracket
8.74" x 4.11" x 2.13" (222mm x 104.5mm x 54mm) with bracketGROSS WEIGHT 3.8 lb. (1.73Kg) NET WEIGHT 2 lb. (0.93Kg) ENVIRONMENTAL OPERATING TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.7 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C) STORAGE HUMIDITY 5 ~ 95% @ 40°C, non-condensing ANTI-VIBRATION With SSD: Random, 3 Grms, 5~500Hz ANTI-SHOCK With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration CERTIFICATION CE/FCC Class A
Description
Low power, compact, and robust, the BOXER-6406U-ADN represents the very best in efficient industrial computing. Easy expansion is joined by a plethora of communication interfaces, granting users a platform that performs in tough environments.
