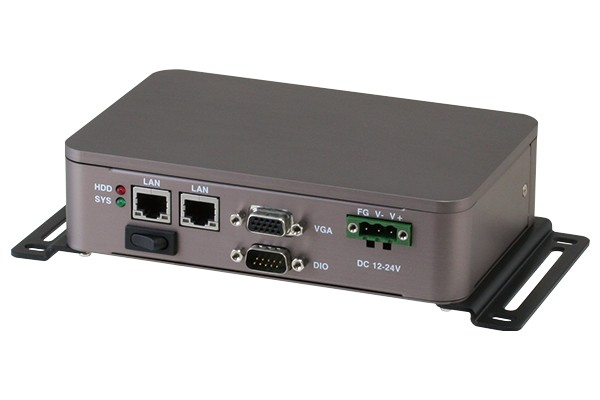

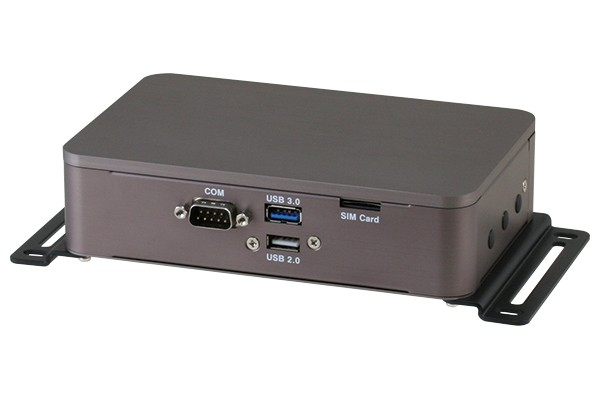

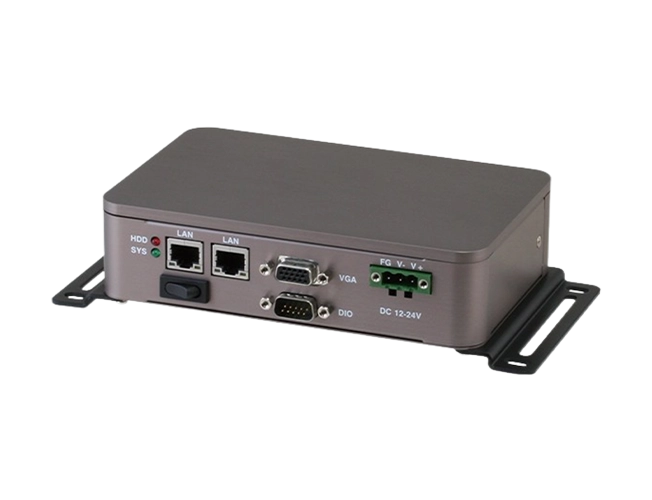

AAEON BOXER-6404U Ultra-Slim Embedded Box PC
-
NG # 003616-HW-AAEON-O16
Manufactured by:
BOXER-6404U Ultra-Slim Embedded Box PC with Intel® Celeron® Processor SoC
Specification
SYSTEM CPU Intel® Celeron™ J1900, 2.0 GHz
Intel® Celeron™ N2807, 1.58 GHzChipset Intel® System on Chip System Memory DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807) Display Interface VGA Storage Device mSATA, HDD/SSD Ethernet Intel® I211-AT x 2 I/O RS-232 x 1
USB 2.0 x 1
USB 3.2 Gen 1 x 1
VGA x 1
LAN x 2
Digital I/O x 8 bit
Antenna holes x 3
Power switch
Power inputExpansion Full-size Mini-Card x 1
Half Mini-Card x 1 (for mSATA)
SIM card slot x 1Indicator Power LED
HDD active LEDOS support Windows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Fedora POWER SUPPLY Power Requirement 12 - 24V with 3-pin terminal block MECHANICAL Mounting Wallmount
VESA (Mounting kit is optional)
DIN rail (Mounting kit is optional)Dimensions (W x H x D) 6.53" x 4.20" x 1.63" (166 mm x 106.6 mm x 41.5 mm) Gross Weight 3.6 lb (1.6 kg) Net Weight 1.76 lb (0.8 kg) ENVIRONMENTAL Operating Temperature -13°F ~ 140°F (-25°C ~ 60°C) with wide temperature HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) Storage Temperature -22°F ~ 176°F (-30°C ~ 80°C) Storage Humidity 95% @ 40°C, non-condensing Anti-Vibration 5 Grms/ 5 ~ 500Hz/ operation –mSATA Anti-Shock Certification CE/FCC class A
Description
Dual GbE LAN Port for Industrial Network Appliance 2.5" HDD/SDD Bay x 1 USB 3.2 Gen 1 Port Connectivity, 8-bit Programmable Digital Input/Output 12 ~ 24V DC-in Support
