AAEON BOXER-6404
-
NG # 003617-HW-AAEON-O17
Manufactured by:

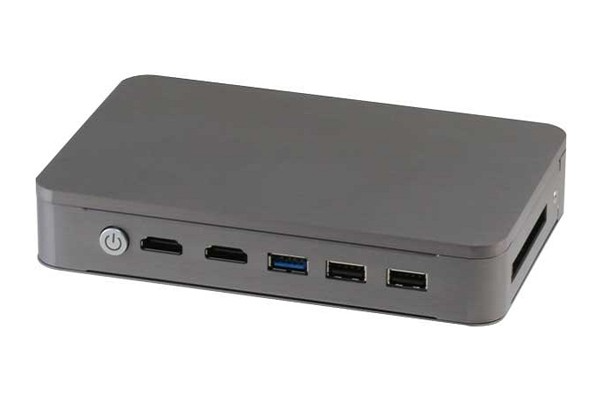

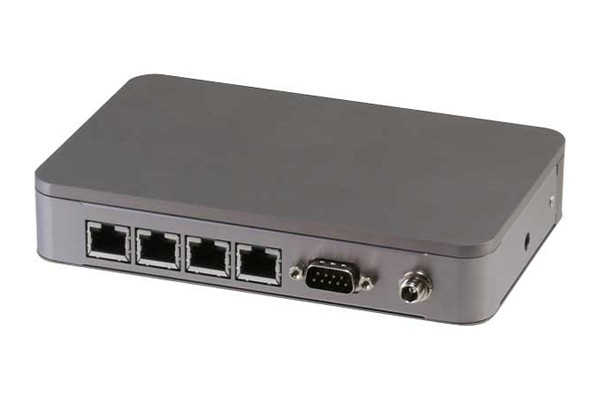

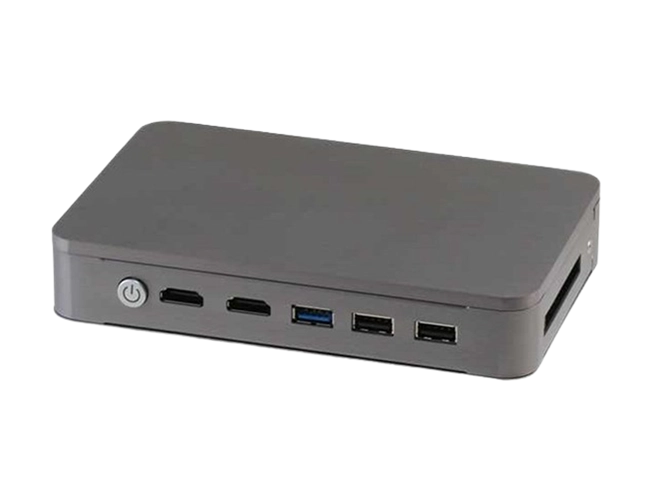

The BOXER-6404 is one of the smallest, most compact embedded PCs on the market, measuring 166 x 106.6 x 30 mm. Within its humbly-designed enclosure packs a quad core CPU, the Intel® Celeron® J1900, providing adequate computing power capabilities, such as dual display via the system’s two HDMI ports, a simple network appliance through the system’s 4 LAN ports with both dual host and LAN redundancies.
Specification
SYSTEM CPU Intel® Celeron™ J1900, 2.0 GHz
Intel® Celeron™ N2807, 1.58 GHzChipset Intel® System on Chip System Memory DDR3L 1333 SODIMM slot x 1,
up to 8 GB (J1900) or 4 GB (N2807)Display Interface HDMI (max. 1920 x 1080) Storage Device CFast Ethernet Intel® I210AT, 10/100/1000Base-TX x 4 I/O RS-232 x 1
USB 2.0 x 2
USB 3.2 Gen 1 x 1
HDMI x 2
LAN x 4
CFast slot x 1
Antenna holes x 1
Power button
Power inputExpansion Full-size Mini-Card (USB interface only) x 1 Indicator Power LED on power button OS support Windows® 10, Windows® 8.1, Windows® 7,
Windows® Embedded 8, Windows® Embedded 7,
Linux FedoraPOWER SUPPLY Power Requirement 12V - 24V with lockable DC jack
MECHANICAL Mounting VESA (Mounting kit is optional)
DIN rail (Mounting kit is optional)Dimensions (W x H x D) 6.53" x 4.20" x 1.18" (166 mm x 106.6 mm x 30 mm) Gross Weight 2.9 lb (1.3 kg) Net Weight 1.9 lb (0.86 kg) ENVIRONMENTAL Operating Temperature -22°F ~ 149°F (-30°C ~ 65°C) with wide temperature CFast™ card
(according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices)Storage Temperature -22°F ~ 176°F (-30°C ~ 80°C) Storage Humidity 95% @ 40°C, non-condensing Anti-Vibration 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card Certification CE/FCC class A
Description
An additional SKU with the dual core Intel® Celeron® N2807 is also available for less demanding applications.
In addition, the enclosure is made entirely out of aluminum. This design, combining the low power consuming CPU, not only allows a fanless configuration, but effectively extends its operating temperature to -30°C ~ 65°C, a range wider than most other contemporaries on the market.
