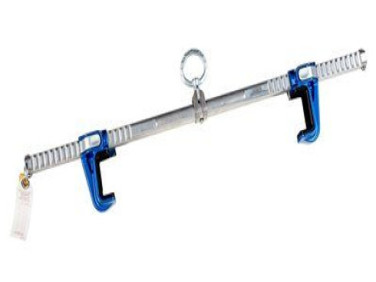

3M DBI Sala 2104715 Large Sliding Beam Anchor Fits 12-30 Inch Wide I-Beam
-
NG # 2307-HW-HON-001
-
MF # 2104715
Manufactured by:
Specification
- Hands-free Mobility 360-degree swiveling D-ring optimizes your mobility on the beam.
- Rugged durability Corrosion-resistant construction meets ANSI standards for weather, environmental, and storage conditions.
- Visible adjustability Dual ratcheting adjustment buttons are accessible above the beam while the locking mechanism is located on the side to reduce accidental engagement.
- Lightweight Compact size and lightweight materials make transportation a breeze.
- Easy pad replacement Snap-in design of wear pads allows them to be replaced quickly in the field.
- Compliant Meets ANSI Z359.18 Anchorage Connector standard; OSHA 420 lb./ANSI 310 lb. ratings.
- Versatile size ranges to fit a variety of beams • Replaceable wear pads • 360-degree swiveling D-ring anchor point • Integrated dual ratcheting system • High-strength, lightweight steel and aluminum construction • 5,000 lb. (22 kN) strength and up to 420 lb. (189 kg) capacity
- Beam Width 12-30 in., Flange Thickness 2.5 in.
- Applications: • Bridge work • Buildings • Warehouses • Arenas • Parking ramps
- Complete mobility. It’s critical to getting the job done, just like your safety. With the new 3M™ DBI-SALA® Sliding Beam Anchor, you get the best of both worlds. Once you secure it to the beam using the redesigned adjustment buttons, simply connect your Self-Retracting Lifeline (SRL)* or lanyard to the swiveling D-ring and you’re ready to work. The anchor point slides effortlessly behind you.
- For foot level tie-off, use 3M™ DBI-SALA® Nano-Lok™ edge Twin-Leg QuickConnect SelfRetracting Lifeline – Cable, 8 ft. (2.4 m) 3500227
- Standards/Approvals: ANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Description
Mobility. It’s critical to getting the job done, just like your fall protection. With the 3M™ DBI-SALA® Sliding Beam Anchor, you can get the best of both worlds. Once you secure it to the beam using the redesigned adjustment buttons, simply connect your Self-Retracting Lifeline (SRL) or lanyard to the swiveling D-ring, and you’re ready to work. The anchor point slides effortlessly behind you.
This sliding beam anchor meets ANSI Z359.18 Anchorage Connector standard; OSHA 420 lb./ANSI 310 lb. ratings, and features hands-free mobility 360-degree swiveling D-ring that optimizes your mobility on the beam. The integrated dual ratcheting system keeps the anchor secure while the guarded locking mechanism is located on the bottom to reduce the chance of accidental disengagement.
